AR88.40-B-1000D

Opening engine hood, moving to upright position and closing

12.02.16

Vehicle 682, 693

Body 688.827 with Vehicle 688.2

Opening engine hood, moving to upright position and closing

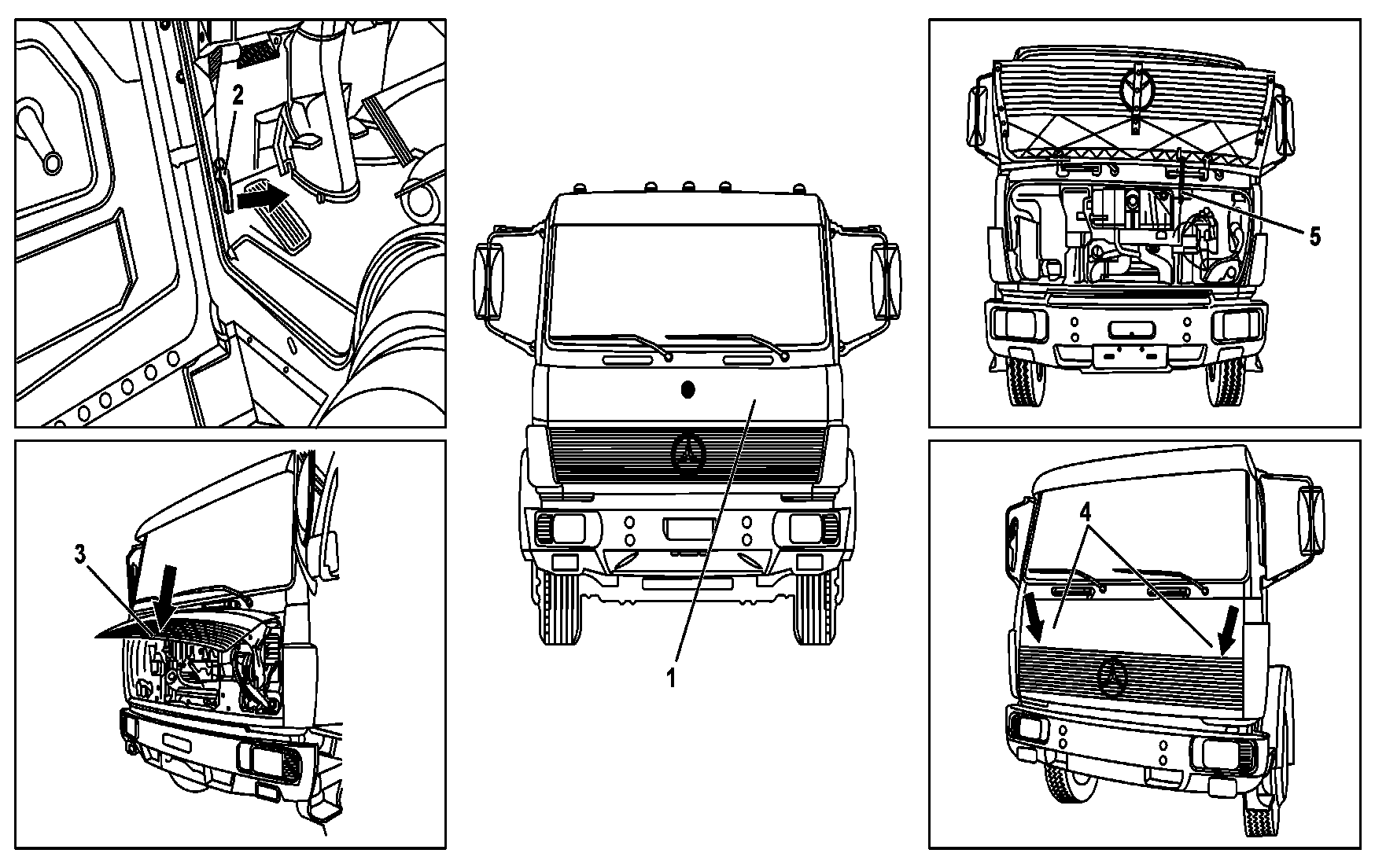

B60.00-0001-09

1 Front cover

2 Lever

3 Cover central edge

4 Pressing area

5 Supporting device

	Open
1	Unlock the front cover (1) pulling the lever (2) inside the cab, located on the left side under the panel
2	Hold the central part of the front cover lower edge (1) using both hands and pull it, tilting it up.	 Vehicles with support stem on the front cover: Tilt the cover up until the supporting device locks, keeping the cover open.
		 Vehicles with gas bumper on the front cover: When pulling the cover to open it, it is driven to the open position by the gas damper
		 To open the front cover, hold it and pull it only on the central part of its bottom edge. The cover should not be pulled by the side edges.
	Close it
3	Lower the front cover (1)	 Vehicles with support stem on the front cover: To lower the front cover, lift it slightly to unlock the supporting device and then lower it without knocking it.
		 Vehicles with gas bumper on the front cover: Pull the front cover down, without knocking it.
4	Place your hands near the side edge (4) of the cover and press it against the cab on one side and then on the other in order to lock it in the closed position.
