Cab mounting
Número | Denominação | Type 682.0, 682.1, 688.2, 693.0, 693.1 | |||
BE60.80-B-1001-02A | Cabin locking adjustment distance (A) | mm | 120...150 | ||
B60.80-0010-03

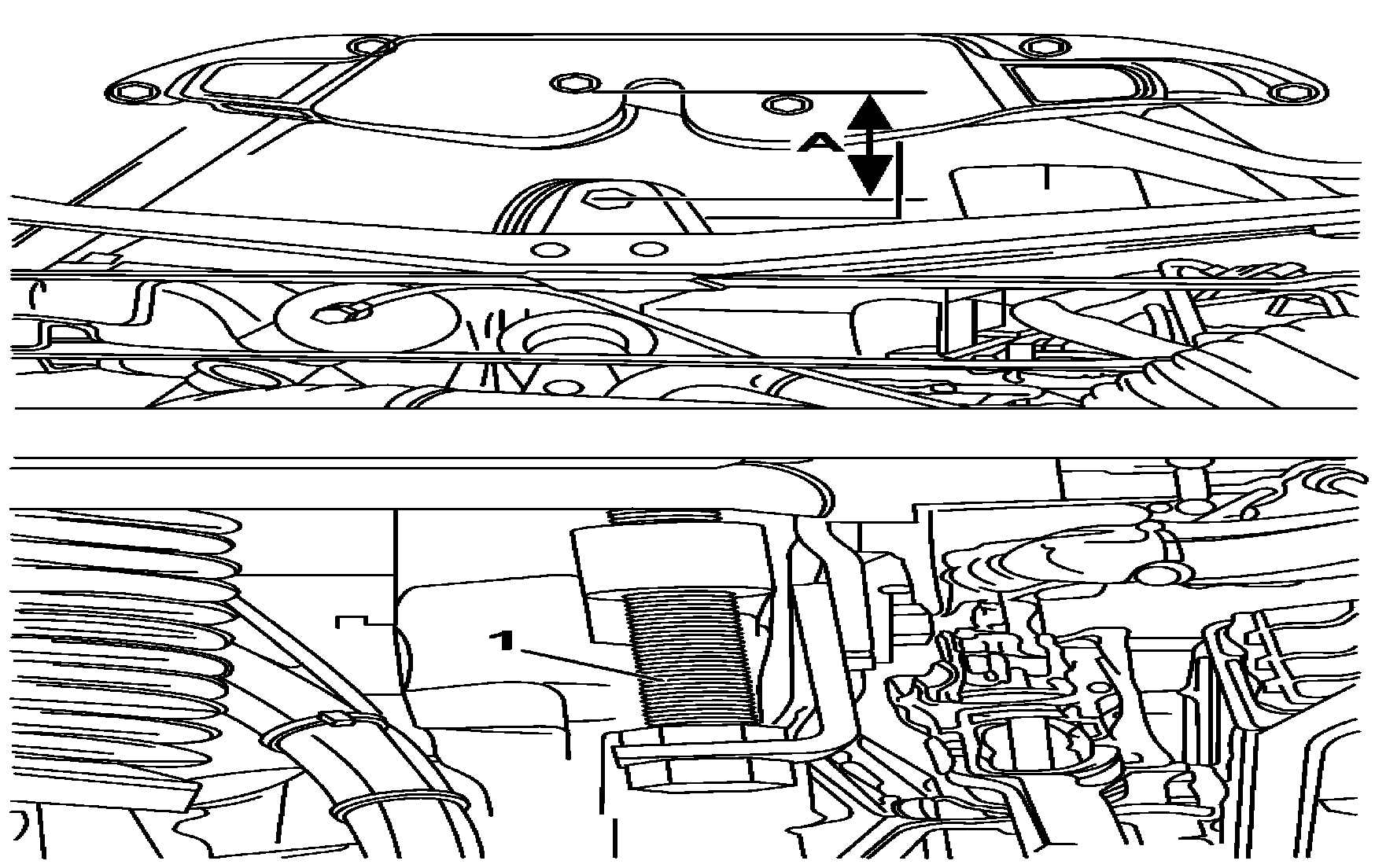

1 Tilt the cabin to the driving position, stopping it before it locks in place (distance A).
This measure can be changed adjusting the adjusting screw (1). The adjusting changes according to the cabin weight, therefore, it should be carried out with all cabin components and devices installed and all tools in their proper places.
2 For the adjusting, loosen the locknut and turn the screw (1) in the stabilizer support. If the “A” distance between the cabin and the locking device is smaller than the value informed, tighten the screw, if it is bigger, loosen the screw. After adjusting, tighten the locknut.
