Prying bell hub with rear axle shaft off the wheel hub.

Typ ar · Thema 35.20 · Version 0100 · 2016-02-12

Gültig für:

Nicht verfügbar in „de“; angezeigt wird Englisch.

Einordnung

Funktionsgruppe 2 Fahrwerk › 35 Hinterachse › 35.20 Radführung, Nabe

EinPAS 17 Antriebsstrang/Achse › 17.51 Hinterachse › 17.51.41 Radträger/Achsschenkel/Radnabe/Radlager

EinPAS 17 Antriebsstrang/Achse › 17.52 Zusatzachse › 17.52.42 Radträger/Achsschenkel/Radnabe/Radlager

Gilt auch für Motoren/Getriebe: 740 751, 740 752

AR35.20-B-0270-01A

Prying bell hub with rear axle shaft off the wheel hub.

Prying bell hub with rear axle shaft off the wheel hub.

B35.20-0020-01

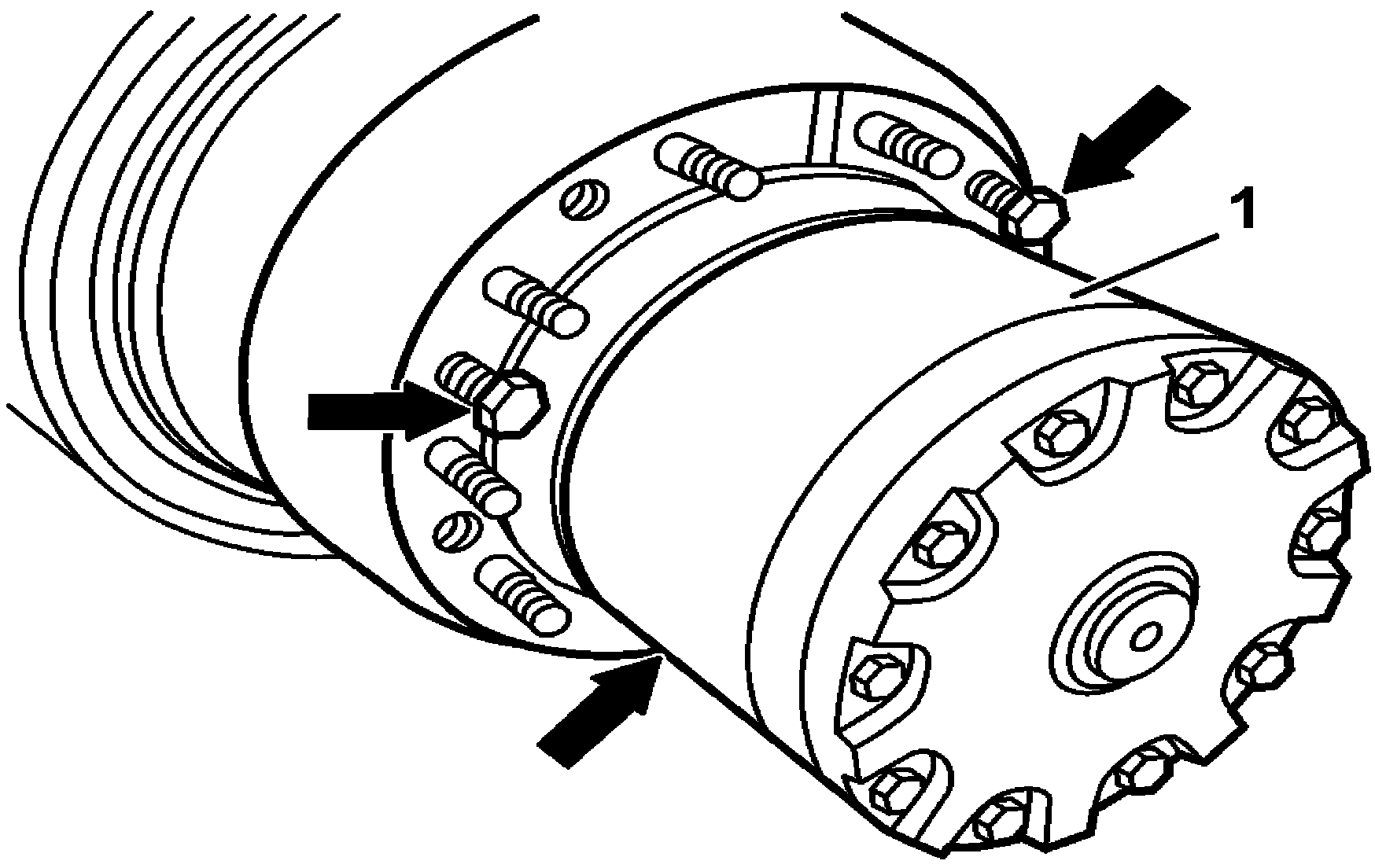

1 With pressure, remove the bell hub (1) from the wheel hub. Utilize 3 M12 X 1.5 bolts (indicated by arrows). The bell hub will be removed with the half-shaft.

To facilitate removing the hub, insert the bolts alternated at three points of the circumference.
