Test specifications for wheel location, wheel hub
Wheel location, wheel hub
Número | Denominação | Front axle 733.002/009/033, 733.036 | |||
BA33.20-B-1001-01A | Slotted nut | Internal - M75/M85 | First tightening | Nm | 400...450 |
Final tightening | ° angular | - 90 | |||
External - M75/M85 | Nm | 400...450 | |||
001 589 53 21 00
Dial gauge
363 589 02 21 00
Dial gauge holder
B33.20-0043-01
Adjust

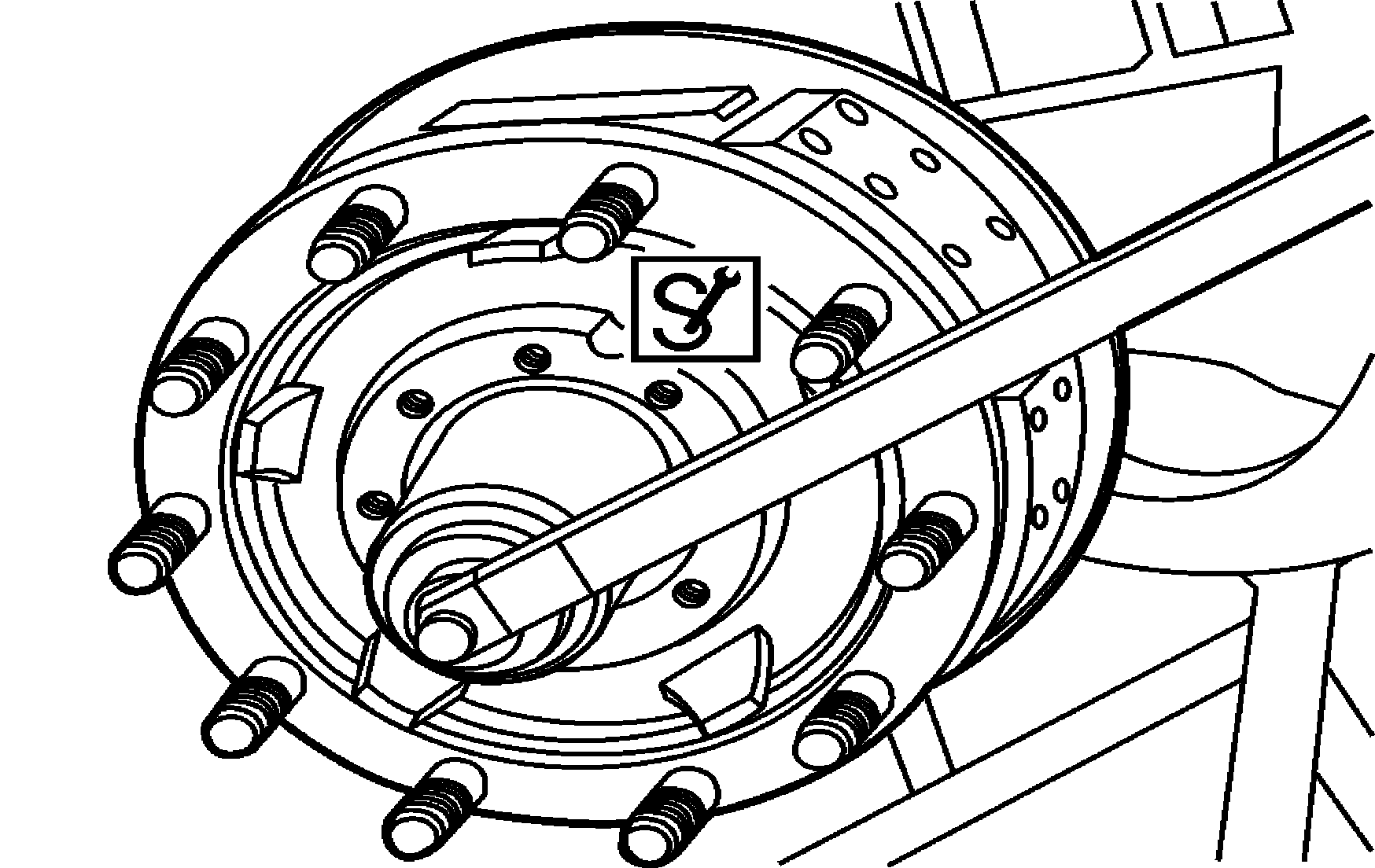

1 Install the internal nut simultaneously turning the wheel hub.
2 Apply some hits in the wheel hub with a brass hammer.
3 Tighten the nut with the specified moment of power and release it a 45°.
B33.20-0044-01

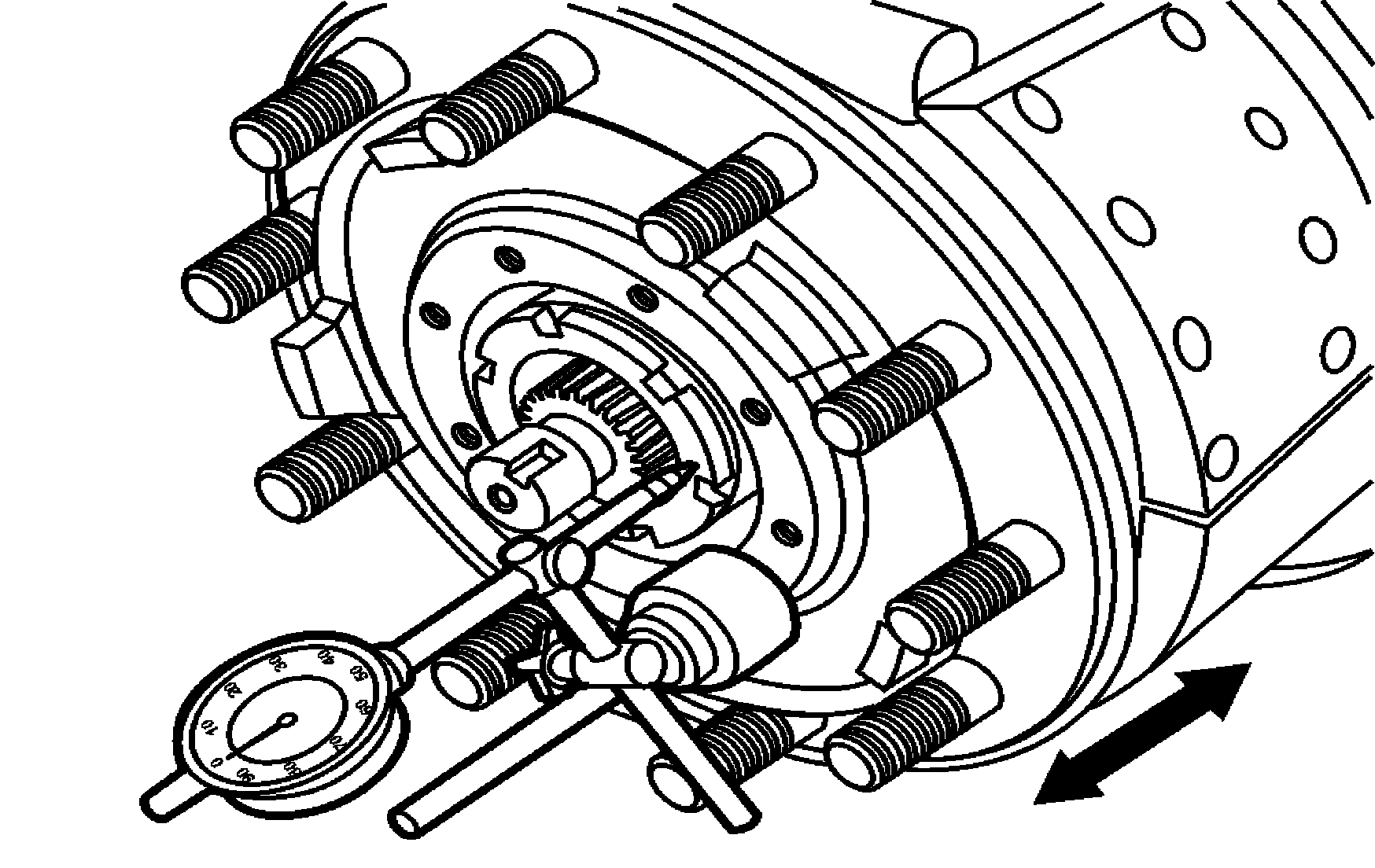

4 Install the indicator support and the indicator.
5 Check the axial play by moving the wheel hub to outside and inside. If necessary, adjust the play, release or tighten the nut as necessary, hitting simultaneously in the wheel hub with a brass hammer.
6 Check the axial play. If the play is correct, install a new lock plate, install the counter-nut and tighten it with the specified moment of power.
7 Fold the lock plate tab in the nut groove and the counter-nut to lock them and prevent them from get lose.
