Compressor unit, location / task / design / function

28.4.96

MODEL 638.0 /1 with CODE (CL0) Rear air suspension lowerable/liftable

MODEL 638.2

Compressor unit, location / task / design / function

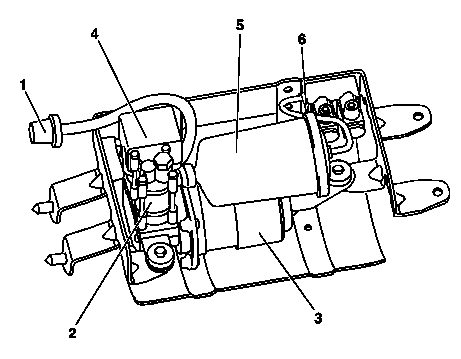

S32.22-0520-11

Position

Under the vehicle

1 Inlet filter

2 Compressor

3 Drier with check valve and throttle

4 Drain valve

5 Electric motor

6 Transverse shutoff valve block

Compressor unit, task

To supply the air suspension with compressed air

Compressor unit, design

The compressor unit consists of the compressor, electric motor, inlet filter, discharge valve, drier and check valve with throttle as well as transverse shutoff block.

Compressor unit, function

In the electrically-driven compressor unit the cleaned compressed-air is drawn in, compressed, dried and led to the air spring bellows in a controlled manner.

Air suspension control module task, design, location

GF32.22-S-4100A

Air suspension inlet filter task, function, location

GF32.22-S-4108A

Compressor task, design, function, location

GF32.22-S-4109A

Air suspension discharge valve task, function, location

GF32.22-S-4110A

Check valve with air suspension throttle task, function, location

GF32.22-S-4111A

Air suspension drier task, function, location

GF32.22-S-4112A
