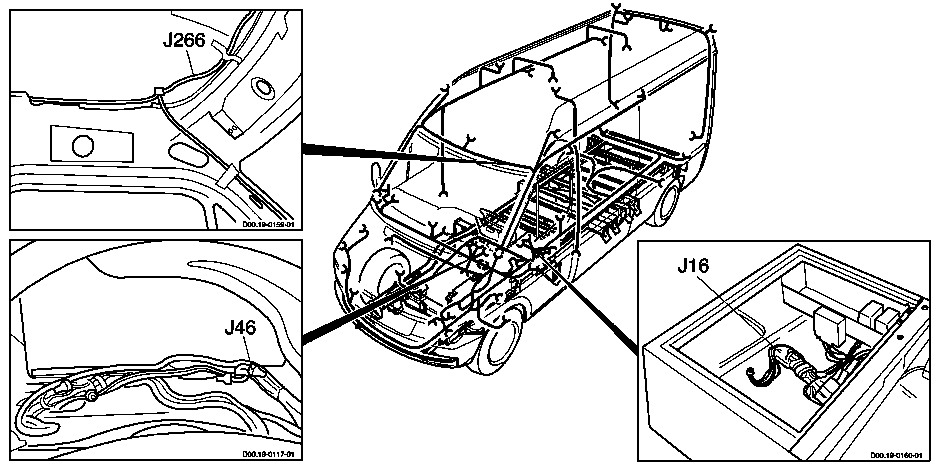

GF00.19-D-3100-34A | Arrangement and assignment of terminal blocks - signal systems/emergency alarm system | MODEL 901, 902, 903, 904 | |
D00.19-0054-09
D00.19-0230-09
Terminal block | Designation | Component | Designation | Connector Pin | |
J16 | FWH/seat frame (behind rubber grommet) | | F6 | ABS fuse | 1 |
Circuit 30 connector sleeve | | F9 | Additional heater fuse (25 A) | 1 | |
| F18 | Additional turn signal module I fuse (10 A) | 1 | ||
| F19 | Additional turn signal module II fuse (10 A) | 1 | ||
| F20 | Headlamp cleaning system fuse (20 A) | 1 | ||
| F22 | Cab socket fuse (20 A) | 1 | ||
| F40 | Daytime running lamps fuse | 1 | ||
| F43 | Radio remote control fuse (10 A) | 1 | ||
| F44 | Central locking fuse (25 A) | 1 | ||
| F45 | Body power supply fuse (15 A) | 1 | ||
| F47 | GSM CTEL circuit 30 fuse (7.5 A) | 1 | ||
| F62 | Interior lights fuse (15 A) | 1 | ||
| F63 | Rear window defroster fuse (30 A) | 1 | ||
| F71 | Group channel communication fuse (10 A) | 1 | ||
| F77 | Rotating beacon fuse (15 A) | 1 | ||
| F82 | Warning signal system circuit 30 fuse (25 A) | 1 | ||
| F92 | Automatic transmission circuit 30 fuse (15 A) (post office) | 1 | ||
| F94 | Additional heater fuse (25 A) (post office) | 1 | ||
| F98 | Warm water heater blower stage 1 fuse (7.5 A) | 1 | ||
| F101 | Warm air auxiliary heater fuse (7.5 A) | 1 | ||
| F110 | Trailer socket fuse (15 A) | 1 | ||
| F119 | AC additional fan fuse (20 A) | 1 | ||
| G2 | Battery | |||
| K26 | Circuit D+ relay | 1 | ||
| K55 | Driving light shutoff relay | 5 | ||
| K70 | Circuit 15 relay for optional equipment (SA) | 5 | ||
J46 | WWH (behind instrument cluster) | | A9 | Car radio | 1.14 |
Circuit 58 connector sleeve | | A71 | Heater timer | 1 | |
| P4 | Tachograph | 1.A2 | ||
| P15 | Instrument cluster | 1.1 | ||
| S3 | ADR pushbutton | 1 | ||
| S12 | Driver seat heater switch | 1 | ||
| S24 | Front heater switch | 4 | ||
| S47 | PTO switch | 10 | ||
| S57 | Differential lock switch | 10 | ||
| S71 | Yellow rotating beacon switch | 1 | ||
| S73 | Warning signal system switch | 10 | ||
| S81 | Rear window defroster pushbutton | 10 | ||
| S85 | Driver interior lighting pushbutton | 10 | ||
| S87 | Additional heater switch | 10 | ||
| S92 | ATA 2 panic alarm pushbutton | 1 | ||
| S93 | Body lamp switch | 10 | ||
| S95 | AC switch | 1 | ||
| S96 | Tipper body two-way pushbutton | 1 | ||
| S97 | Panic switch | 1 | ||
| S98 | Front heater defroster switch stage 4 | 1 | ||
| S99 | ATA 2 two-way pushbutton | 1 | ||
| S100 | Additional heat exchanger two-way switch | 1 | ||
| S101 | Adjustable exterior mirror switch | 2 | ||
| S107 | Front passenger seat heater switch | 1 | ||
| S108 | Driver door power window switch | 1 | ||
| S109 | Front passenger door power window switch | 1 | ||
| S124 | Reading lamps switch | 10 | ||
| S141 | Stationary heater switch | 10 | ||
| S143 | AWD engagement switch | 1 | ||
| X79 | Frame/waistrail plug connection | 7 | ||
J266 | RWH (close to plug connection X129) | | E49 | Left front yellow rotating beacon | 1 |
Rotating beacon connector sleeve | | E50 | Right rear yellow rotating beacon | 1 | |
| X129 | Additional rotating beacon connector | 1 | ||
| X143 | Waistrail/roof connector LHS (rotating beacon) | 1 | ||
| X143 | Waistrail/roof connector RHS (rotating beacon) | 2 | ||
J340 | RWH (close to E43) | | B104 | Interior sensor | 4 |
Circuit 31 connector sleeve | | B105 | Interior sensor | 4 | |
| B106 | Interior sensor | 4 | ||
| E12 | Additional stop light | 2 | ||
| E38 | Left front body-outline light | 2 | ||
| E39 | Right front body-outline light | 2 | ||
| E43 | Cab light | 1 | ||
| E47 | Left front blue rotating beacon | 2 | ||
| E48 | Right front blue rotating beacon | 2 | ||
| E49 | Left front yellow rotating beacon | 2 | ||
| E50 | Right rear yellow rotating beacon | 2 | ||
| E53 | Interior light I | 2 | ||
| E54 | Interior light II | 2 | ||
| E55 | Interior light III | 2 | ||
| E69 | Left side interior light | 1 | ||
| E70 | Right side interior light | 1 | ||
| E72 | Middle interior light, crewcab | 1 | ||
| E73 | Middle interior light, rear | 1 | ||
| E74 | Middle interior light, front | 1 | ||
| J147 | Turn signal lights ground connector sleeve | |||
| X32 | Rear window defroster right rear contact plate, 2-pin | 2 | ||
| X34 | Right rear contact plate, 3-pin | 2 | ||
| X45.1 | Frame/roof connector (standard) | 2 | ||
| X45.2 | Frame/roof connector (LB5/L07) | 5 | ||
| X129 | Additional rotating beacon connector | 2 |
