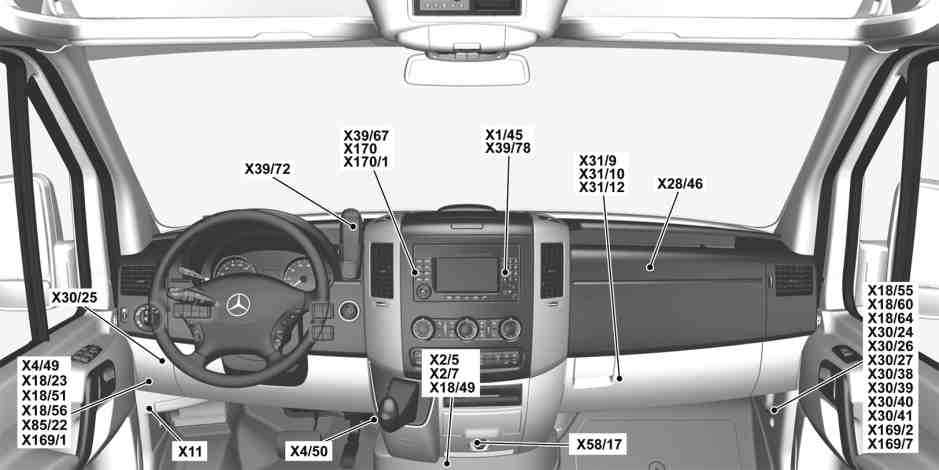

Location and assignment of line and plug connectors, cockpit

GF00.19-D-1000-03AA

Location and assignment of line and plug connectors, cockpit

Model

900.633/655/657

with code ZS8 (National version for China)

Model

906.1/2/6/7 up to 6/30/13

except code ZL3 (National version for Latin America)

X1/45

Antenna preinstallation connector

X30/38

AAG control unit CAN-B preinstallation connector

X2/5

Tachograph connector

X30/39

PSM control unit CAN-B preinstallation connector

X2/7

Speed sensor connector

X30/40

Tachograph CAN-C preinstallation connector

X4/49

Tml. 30 connector

X30/41

Drive train sensor CAN voltage distributor connector

X4/50

Ground cutout connector

X31/9

Blower switch connector

X11

Diagnostic socket (16-pin)

X31/10

Blower stage 1 connector

X18/23

COC/roof connector

X31/12

Tml. 31 blower connector

X18/49

HLS/COC connector 2

X39/67

Radio preinstallation connector

X18/51

COC/roof connector 2

X39/72

Telephone antenna connector

X18/55

HLS/COC connector 3

X39/78

Telephone antenna connector

X18/56

HLS/COC connector

X58/17

Front interior socket

X18/60

Main wiring harness (MWH [HLS])/cockpit connector 4

X85/22

COC/roof fan connector

X18/64

HLS/COC connector 5

X169/1

COC/DLS backup camera connector

X28/46

Front passenger airbag connector

X169/2

COC/HLS backup camera connector

X30/24

Interior CAN bus connector

X169/7

Backup camera connector

X30/25

Interior CAN bus connector

X170

Backup camera monitor connector

X30/26

Interior CAN bus connector

X170/1

Backup camera monitor connector

X30/27

Engine CAN bus connector
