P97.20-2482-11
Shown on model 204.0 Engine hood
P97.20-2525-11
Shown on model 212.0 Liftgate
P97.20-2532-11
Driver door
P97.20-2533-08
Front upper longitudinal member, A-pillar, C-pillar, side wall paneling and side bottom longitudinal member
P97.20-2488-11
Shown on model 204.0 front longitudinal member
P97.20-2489-11
Shown on model 204.0 rear longitudinal member

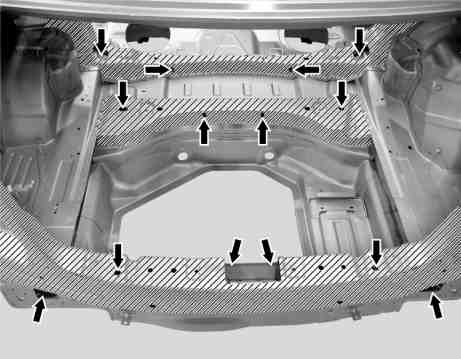

P97.20-2490-11
Shown on model 204.0 Rear end assembly
P97.20-2517-09
Shown on model 204.0 Underfloor
Danger! | Risk of explosion and poisoning caused by solvent vapors and gasses. Risk of injury to skin and eyes when handling anticorrosion agents. | Never spray anticorrosion agents on flames or glowing hot objects and keep them well away from all potential sources of ignition. Use them only in well-ventilated rooms; wear respiratory protection. | |
| Notes on cavity preservation | ||
1 | Perform repair preservation | Apply cavity preservation agent in marked areas, from inside, only after completing sealing and paintwork, however, before assembly work. Apply repair preservation agent twice with a drying time of 5 minutes in between. | |
The spraying hose should be stiff and the nozzles should spray at angle to the front and rear. The cavities should be dry. | |||
Insert spray hoses as far as possible into cavities. Spray while inserting and pulling out slowly. | |||
| Processing instructions for cavity preservation agent | ||
| Cavity protection, general | ||
Preservation agent | |||
2 | Remove cavity sealant from drain holes | The processing temperature should not be less than 15 °C. Additional preservation measures may be required, depending on the repair area, deviating from the standard cavity preservation shown. |
Repair materials
Number | Designation | Order number |
BR00.45-Z-1003-05A | Cavity preservation, solvent-free (1 l container) | A 000 986 72 70 05 |
