AR88.20-P-2200N | Remove/install rear bumper | 30.11.09 |
MODEL 215
with CODE (550) Trailer hitch
except CODE (772) AMG styling package - front spoiler, side skirts and rear apron
Trailer hitch with removable ball neck
MODEL 215
with CODE (550) Trailer hitch
except CODE (772) AMG styling package - front spoiler, side skirts and rear apron
Mechanical swing-away trailer hitch

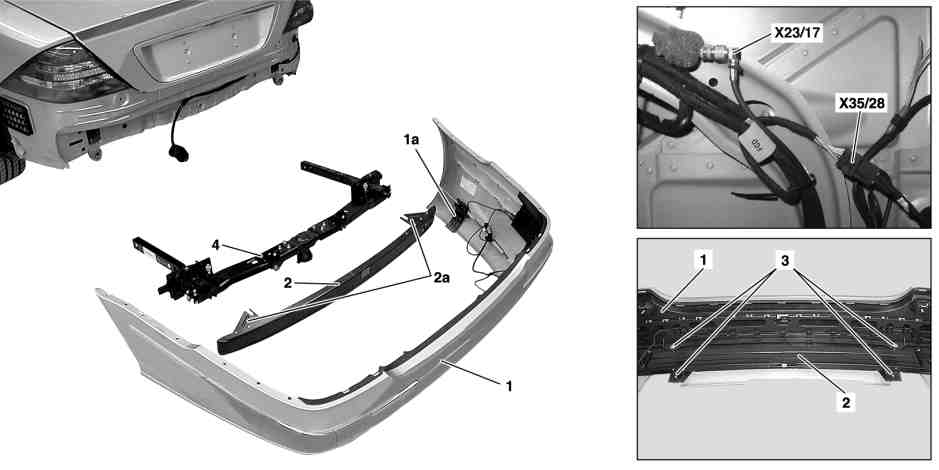

P88.20-2497-09
1 Bumper
1a Bracket
2 Bumper bracket
X23/17 Right emergency call system (TELE AID) backup antenna connector
X35/28 PTS, rear bumper connector
2a Retaining tabs
3 Bolts
4 Trailer hitch
P88.20-2083-06
5 Bolts
6 Bolts
7 Fender liner
8 Bracket
12 Edge at rear fender
13 Edge at bumper
P88.20-2080-06
4 Trailer hitch
9 Nut
10 Collar bolts
11 Rear crossmember
14 Nut
15 Cover
| Removing | ||
1 | Remove trunk lining | Model 215.3. Rear wall paneling can remain in vehicle. | |
2.1 | Disconnect right emergency call (TELE AID) backup antenna connector (X23/17) | Only with TELE AID emergency call system (D2B) (code 347) or with TELE AID (code 855). | |
3.1 | Disconnect PTS, rear bumper connector (X35/28) | Only with Parktronic system (PTS) ( code 220a). | |
4 | Remove bolts (5) | On left and right. | |
5 | Push fender liner (7) to side and unscrew bolts (6) | On left and right. | |
6 | Unscrew nut (14) | On left and right. | |
7 | Remove covers (15) and loosen nuts (9) 2 to 3 turns | On left and right. | |
8 | Remove bumper (1) | ||
9 | Remove screws (3) and remove bumper bracket (2) from bumper (1) | ||
| Install | ||
10 | Fit bumper bracket (2) in bumper (1) and screw in screws (3) | Bolt, bumper to bumper reinforcement | |
11 | Install bumper (1), slide bracket (1a) on left and right into brackets (8) on guides | ||
12 | Adjust bumper (1) in longitudinal direction | Push bumper (1) onto collar bolts (10) until the edge of the bumper (13) is flush with the edge of the rear fender (12). | |
13 | Adjust height of bumper (1) | Adjust height of bumper by turning collar bolts (10). | |
14 | Tighten nut (9) and install covers (15) | On left and right. | |
Nut securing bumper reinforcement to trailer hitch | |||
15 | Screw on nut (14) | On left and right. | |
16 | Screw in bolts (5) | On left and right. | |
17 | Screw in bolts (6) and install fender liner (7) | On left and right. | |
18.1 | Connect rear bumper PTS connector (X35/28) | Only with Parktronic system (PTS) ( code 220a). | |
19.1 | Connect right emergency call (TELE AID) backup antenna connector (X23/17) | Only with TELE AID emergency call system (D2B) (code 347) or with TELE AID (code 855). | |
20 | Install trunk paneling | Model 215.3. |
Trailer hitch mechanical system
