Remove/install side paneling in trunk

AR68.30-P-4800LWR

Remove/install side paneling in trunk

29.03.2018

Model

205.4, 238.4

Modification notes

22.03.2018

Special tool changed.

Operation step 7

Shown on right trim (8) on model 205.4

2

Cover

7

Partition

11

Nuts

4

Retaining clips

8

Cover

E18/4

Right luggage compartment lamp

5

Cover

9

Guide

S54/10

Right luggage compartment rear backrest release button

6

Tie-down eye

10

Seal

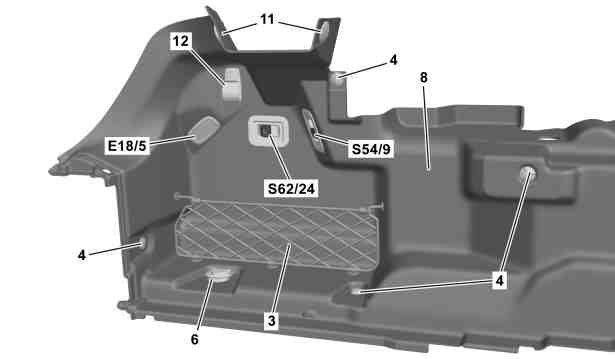

Shown on left trim (8) on model 238.4 with code 550 (Trailer hitch)

3

Net

4

Retaining clips

6

Tie-down eye

8

Cover

11

Nuts

12

Hook

E18/5

Left luggage compartment lamp

S54/9

Left luggage compartment rear backrest release button

S62/24

Trailer hitch release switch

 Warning

Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.

No parts of the body or limbs should be within the operating area when the components are moving.

AS00.00-Z-0011-01A

Notes on HANDS-FREE ACCESS

AH80.61-P-0001-01A

 

Remove/install

1

Remove cover (2).

AR68.30-P-4660LWR

2

Remove rear-end center-section trim.

AR68.30-P-4785LW

3

Unscrew nuts (11).

4

Remove tie-down eye (6).

 Screw/bolt for tie-down eye

*BA68.50-P-1001-03I

5

Separate partition (7) from trim (8) and place behind guide (9).

 Pay attention to installation position.

6

Remove hook (12).

Model 238.4

7

Remove retaining clips (4).

 Dismantling tool

*000589956300

8

Unhook trim (8) from guide (9) and release.

 Installation: Ensure that paneling (5), seal (10) as well as retaining bracket of net (3) are installed correctly.

9

Disconnect electrical connector from left trunk rear seat backrest release button (S54/9) or right trunk rear seat backrest release button (S54/10).

10

Disconnect electrical connector for right trunk lamp (E18/4).

When removing right paneling (8).

11

Disconnect electrical connector for left trunk lamp (E18/5).

Model 238.4
When removing left paneling (8).

12

Disconnect electrical connector for trailer hitch release switch (S62/24).

Model 205.4, 238.4
with code 550 (Trailer coupling)
When removing left paneling (8).

13

Remove trim (8).

14

Install in the reverse order.



Check

15

Perform function test for corresponding component parts.

 Cargo retainers

Number

Designation

Model 205

Model 238

BA68.50-P-1001-03I

Screw/bolt for tie-down eye

Nm

24

24
