Remove/install paneling on B-pillar

AR68.30-P-4700GQ

14.4.15

Model

166, 292

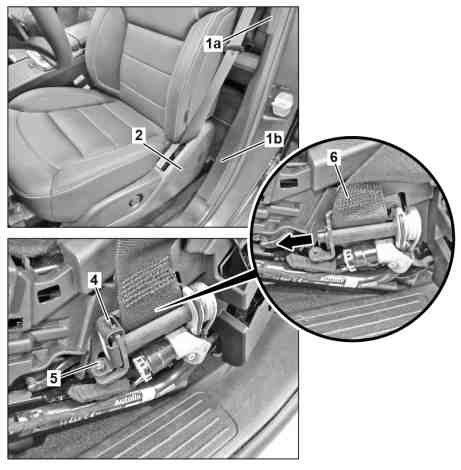

Shown on model 166 with CODE 494 (USA version)

1a	Top B-pillar paneling
1b	Bottom B-pillar paneling
2	Belt end fitting outer paneling
4	Locking plate
5	Screw
6	Seat belt

P68.30-3573-12

P68.30-3575-08

1a	Top B-pillar paneling		3	Retaining clips		8	Pin
1b	Bottom B-pillar paneling		7	Guide

 	Remove/install
1	Remove front and rear door sill		AR68.30-P-4100GQ
2	Move front seat forward and move backrest to vertical position
3	Remove belt end fitting outer paneling (2)		AR91.10-P-1200GQ
4	Remove screw (5)	Model 166, 292 with code 494 (US version)
		 Bolt, locking plate on belt end fitting/tensioner	*BA91.40-P-1002-01R
5	Remove tab washer (4)	Model 166, 292 with code 494 (US version)
6	Pull seat belt (6) toward front (arrow) out of guide on front seat	Model 166, 292 with code 494 (US version)
		 Installation: Do not twist seat belt (6).
7	Remove bolt from belt end fitting	Model 166, 292 with code 494 (US version)
		 Bolt, belt end fitting/tensioner on front seat	*BA91.40-P-1001-01R
8	Loosen edge guard at front and rear in area of upper B-pillar paneling (1a) and lower B-pillar paneling (1)
9	Unclip upper B-pillar paneling (1a) from B-pillar	 Installation: Ensure that retaining clips (3) are seated correctly.
		 Mounting wedge	*110589035900
10	Pull upper B-pillar paneling (1a) downward out of guide on roof and remove	 Installation: It is necessary to insert guide (7) into bolt (8).
11	Unclip lower B-pillar paneling (1b) on B-pillar and remove	 Installation: Ensure that retaining clips (3) are seated correctly.
		 Mounting wedge	*110589035900
12	Install in the reverse order

 Seat belts/emergency tensioning retractors

Number	Designation		Model 166	Model 292
BA91.40-P-1001-01R	Bolt, belt end fitting/tensioner on front seat	Nm	35	35

 Seat belts/emergency tensioning retractors

Number	Designation		Model 166	Model 292
BA91.40-P-1002-01R	Bolt, locking plate on belt end fitting/tensioner	Nm	4	4

110 589 03 59 00

Mounting wedge
