Remove/install paneling in footwell

AR68.30-P-4010NKB

Remove/install paneling in footwell

25.04.2018

Model

117

Model

176

Model

242

Model

246

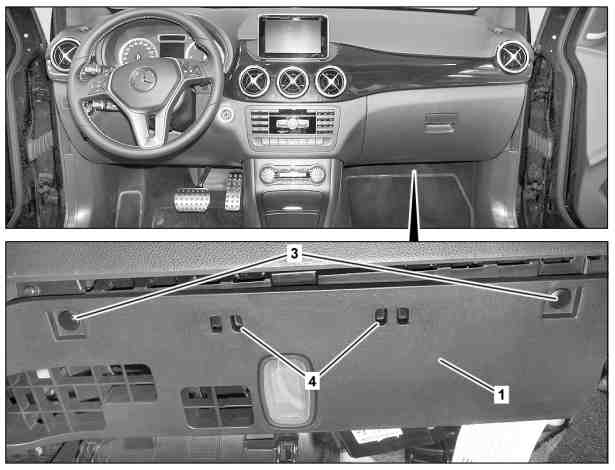

Passenger footwell, shown on MODEL 246

1

Footwell paneling on passenger side

3

Retaining clips

4

Bracket

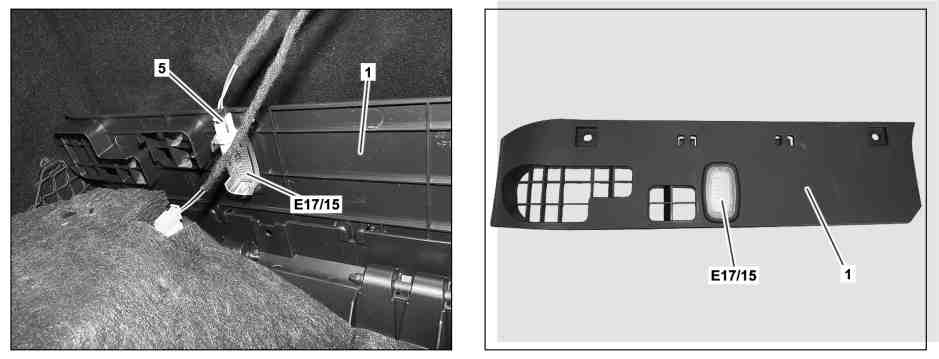

Passenger footwell, shown on MODEL 246

1

Footwell paneling on passenger side

5

Electrical connector

E17/15

Right front footwell lamp

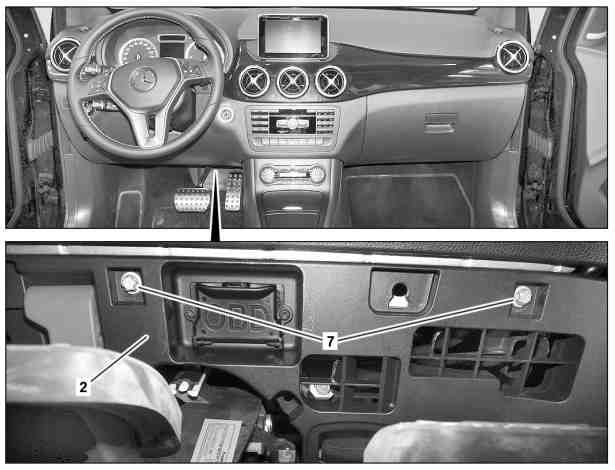

Driver footwell, shown on MODEL 246

2

Footwell trim on driver-side

7

Bolts

Driver footwell, shown on MODEL 246 with CODE U62 (Light and visibility package)

2

Footwell trim on driver-side

10

Electrical connector

12

Release

9

Cable tie

11

Catch hook

X11/4

Diagnostic connector

 Warning

Risk of injury during testing and repair operations related to pyrotechnical components

Do not expose pyrotechnical component parts to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such component parts.

AS91.00-Z-0008-01A

Information, assessment and legal requirements when working with, handling and storing pyrotechnical components

AH91.00-Z-0000-10A

Remove, install driver-side footwell paneling (2)

1

Move driver seat towards the rear

2

Disconnect ground line of battery

Model 117, 176, 242, 246
with code 294 (Kneebag)

AR54.10-P-0003NKB

3

Unscrew bolts (7) and remove driver side footwell paneling (2)

 Model 117, 176, 242, 246
with code 294 (Kneebag)
Secure driver kneebag against falling down.

 Model 117, 176, 242, 246
with code 294 (Kneebag)Bolt, knee airbag to bracket

*BA91.60-P-1009-01F

4

Unlock electrical connector from diagnostic connector (X11/4) and disconnect

5

Unclip cable tie (9)

Model 117, 176, 242, 246
with code U62 (Exterior light and sight package)

 Clip remover

*452589016300

6

Disconnect electrical connector (10)

Model 117, 176, 242, 246
with code U62 (Exterior light and sight package)

7

Release catch hook (11) and unclip release (12) from driver-side footwell paneling (2)

8

Remove driver side footwell paneling (2) from vehicle

9

Remove diagnostic connector (X11/4) from driver side footwell paneling (2)

When replacing driver side footwell paneling (2).

10

Remove left front footwell lamp from driver side footwell paneling (2)

Model 117, 176, 242, 246
with code U62 (Exterior light and sight package)
When replacing driver side footwell paneling (2).

11

Install in the reverse order

Remove, install passenger side footwell paneling (1)

12

Move front passenger seat towards the rear

13

Remove retaining clips (3) from passenger side footwell paneling (1)

 Clip remover

*452589016300

14

Push passenger side footwell paneling (1) toward front out of brackets (4)

15

Disconnect electrical connector (5) and remove passenger side footwell paneling (1)

Model 117, 176, 242, 246
with code U62 (Exterior light and sight package)

16

Remove right front footwell lamp (E17/15)

Model 117, 176, 242, 246
with code U62 (Exterior light and sight package)
When replacing passenger side footwell paneling (1).

17

Install in the reverse order

 Airbag

Number

Designation

Model 117

Model 176

BA91.60-P-1009-01F

Bolt, knee airbag to bracket

Nm

5

5

 Airbag

Number

Designation

Model 242, 246

BA91.60-P-1009-01F

Bolt, knee airbag to bracket

Nm

5
