Welding in right outer corner pillar paneling
Type ar · emne 64.30 · version 0105 · 2006-07-26
Gælder for: MODEL 901.06 /36 /37 /46 /66 /67, 902.06 /07 /36 /37 /46 /47 /66 /67, 903.06 /07 /36 /37 /46 /47 /66 /67, 904.06 /36 /46 /66 MODEL 690.63 /64
Ikke tilgængelig på “da”; vises på Engelsk.
Placering
Funktionsgruppe 3 Karrosseri › 64 Bagvæg og hæk › 64.30 Hjørneplade — Serie 690 (modeller 63*, 64*) · Serie 901 (modeller 06*, 36*, 37*, 46*, 66*, 67*) · Serie 902 (modeller 06*, 07*, 36*, 37*, 46*, 47*, 66*, 67*) · Serie 903 (modeller 06*, 07*, 36*, 37*, 46*, 47*, 66*, 67*) · Serie 904 (modeller 06*, 36*, 46*, 66*)
EinPAS 35 Karrosseri/ramme/monteringsdele › 35.31 Bagvæg/hæk › 35.31.30 Bagvæg/hæk — Serie 690 (modeller 63*, 64*) · Serie 901 (modeller 06*, 36*, 37*, 46*, 66*, 67*) · Serie 902 (modeller 06*, 07*, 36*, 37*, 46*, 47*, 66*, 67*) · Serie 903 (modeller 06*, 07*, 36*, 37*, 46*, 47*, 66*, 67*) · Serie 904 (modeller 06*, 36*, 46*, 66*)
EinPAS 35 Karrosseri/ramme/monteringsdele › 35.34 Sidevæg › 35.34.45 Stolpe — Serie 690 (modeller 63*, 64*) · Serie 901 (modeller 06*, 36*, 37*, 46*, 66*, 67*) · Serie 902 (modeller 06*, 07*, 36*, 37*, 46*, 47*, 66*, 67*) · Serie 903 (modeller 06*, 07*, 36*, 37*, 46*, 47*, 66*, 67*) · Serie 904 (modeller 06*, 36*, 46*, 66*)
AR64.30-D-5724-04A
| Welding in right outer corner pillar paneling
|
|
|
WE58.40-Z-1001-02A
| Inert gas welder
|
WE58.40-Z-1002-02A
| Spot welder
|
Figure shows van with high roof as an example

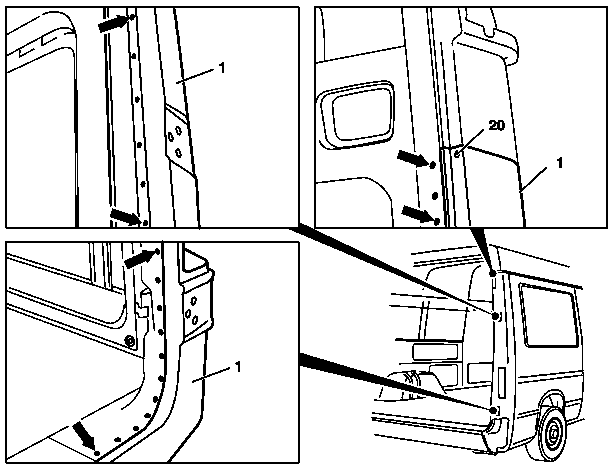

1 Spot weld right outer corner pillar paneling (1) to inner corner pillar paneling ( , arrows).
2 Weld right outer corner pillar paneling (1) to roof frame paneling ( , 20).
Figure shows van with high roof as an example
3 Weld right outer corner pillar paneling (1) to side wall inner section (2) and roof frame paneling ( , arrows).
Figure shows van with high roof as an example
4 Weld right outer corner pillar paneling (1) to reinforcement panel ( , arrows).
5 Spot weld right outer corner pillar paneling (1) to rear cross member and longitudinal member ( , 21).
Figure shows van with high roof as an example

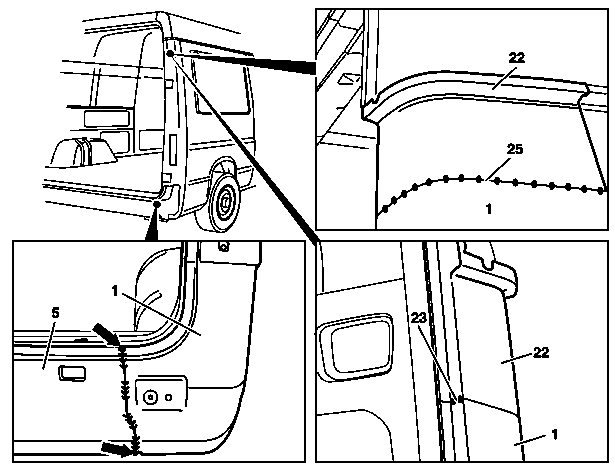

6 Weld right outer corner pillar paneling (1) to remaining sheet metal (22) ( , 23 25).
7 Weld right outer corner pillar paneling (1) to end plate (5) ( , arrows).
Figure shows van with high roof as an example

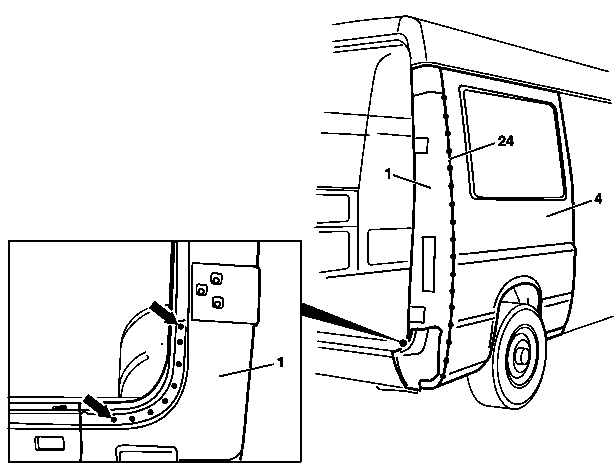

8 Weld right outer corner pillar paneling (1) to reinforcement panel ( , arrows).
9 Weld right outer corner pillar paneling (1) to side wall paneling (4) ( , 24).
