Remove/install low-frequency horn

Type ar · emne 54.35 · version 0100 · 2017-09-07

Gælder for: Model 470, 471

Ikke tilgængelig på “da”; vises på Engelsk.

Placering

Funktionsgruppe 2 Chassis › 54 El-system, udrustning og instrumenter › 54.35 Signalsystem — Serie 470 · Serie 471

EinPAS 26 Aktive sikkerhedssystemer › 26.40 Signal-/advarselssystem › 26.40.50 horn/hornsignalsystem/advarselssummer — Serie 470 · Serie 471

AR54.35-S-1558P

Remove/install low-frequency horn

23.08.2017

Model

470, 471

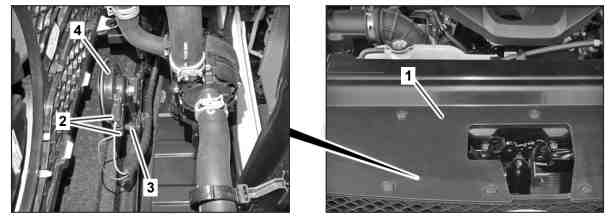

Remove/install low-frequency horn

1

Cover

2

Electrical connectors

3

Nut

4

Low-frequency horn

S54.35-4520-04

Warning

Risk of injury. Skin or eye injuries may result when handling hot or glowing objects.

Wear protective gloves, protective clothing and safety glasses, if necessary.

AS00.00-Z-0002-01A

Caution

Risk of injury caused by scraping or cutting body parts on sharp vehicle parts

Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.

AS00.00-Z-0017-01A

Remove/install

1

Remove cover (1)

AR88.40-S-4001-02P

2

Separate electrical connectors (2)

3

Unscrew nut (3) and remove low-frequency horn (4)

4

Install in the reverse order

Check

5

Check function of low-frequency horn (4)
