Installing brake shoe pin
Type ar · emne 42.10 · version 0202 · 2017-07-12
Gælder for: Model 979.02/07/09 with rear axle 743.454/458, 749.117 Model 979.27 with rear axle 743.454
Ikke tilgængelig på “da”; vises på Engelsk.
Placering
Funktionsgruppe 2 Chassis › 42 Bremsehydraulik og -mekanik › 42.10 Driftsbremse — Serie 979 (modeller 02*, 07*, 09*, 27*)
EinPAS 21 bremser/vakuumsystem/trykluftsystem › 21.15 driftsbremse/vakuumsystem › 21.15.40 driftsbremse foran — Serie 979 (modeller 02*, 07*, 09*, 27*)
EinPAS 21 bremser/vakuumsystem/trykluftsystem › 21.15 driftsbremse/vakuumsystem › 21.15.42 driftsbremse bagest — Serie 979 (modeller 02*, 07*, 09*, 27*)
Gælder også for motorer/gearkasser: 743 454, 743 458, 749 117
AR42.10-B-1020-02LS
| Installing brake shoe pin
|
|
|
Model
| 979.02/07/09 with rear axle 743.454/458, 749.117
|
Model
| 979.27 with rear axle 743.454
|
1

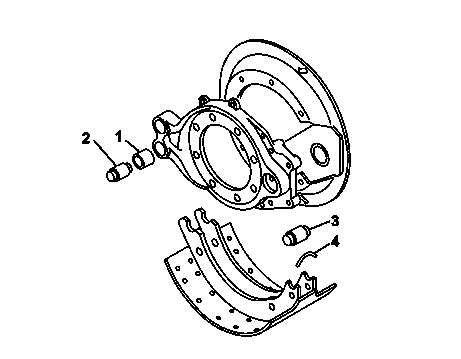

| Apply grease to the brake shoe pins (2) and bushings (1).
|
2
| Install the brake shoe pins (2) with a plastic hammer.
|
3
| Install the rollers (3) and lock with the latches (4).
|
