Check and adjust wheel bearing play

Type ar · emne 35.20 · version 0100 · 2016-02-12

Gælder for:

Ikke tilgængelig på “da”; vises på Engelsk.

Placering

Funktionsgruppe 2 Chassis › 35 Bagaksel › 35.20 Hjulleje, nav — Serie 634 (modeller 061, 071)

EinPAS 17 Drivstreng/aksel › 17.51 Bagaksel › 17.51.41 hjulholder/akselspindel/hjulnav/hjulleje — Serie 634 (modeller 061, 071)

Gælder også for motorer/gearkasser: 749 909

AR35.20-B-0310-06B

Check and adjust wheel bearing play

Rear axle 749.909

Wheel hub

Número

Denominação

Rear axle 749.7, 749.9

BE35.20-B-1001-02A

Axial play of wheel hub bearings

mm

0.02...0.04

Hub

Número

Denominação

Rear axle 749.710, 749.909/917

BA35.20-B-1001-06F

Nut with locking screw

-

First stage

Nm

180...200

Second stage

° angular

- 90

Check and adjust wheel bearing play
Check and adjust wheel bearing play
Check and adjust wheel bearing play

001 589 53 21 00

Dial indicator

363 589 02 21 00

Dial indicator holder

389 589 00 13 00

Special spanner

Check and adjust wheel bearing play

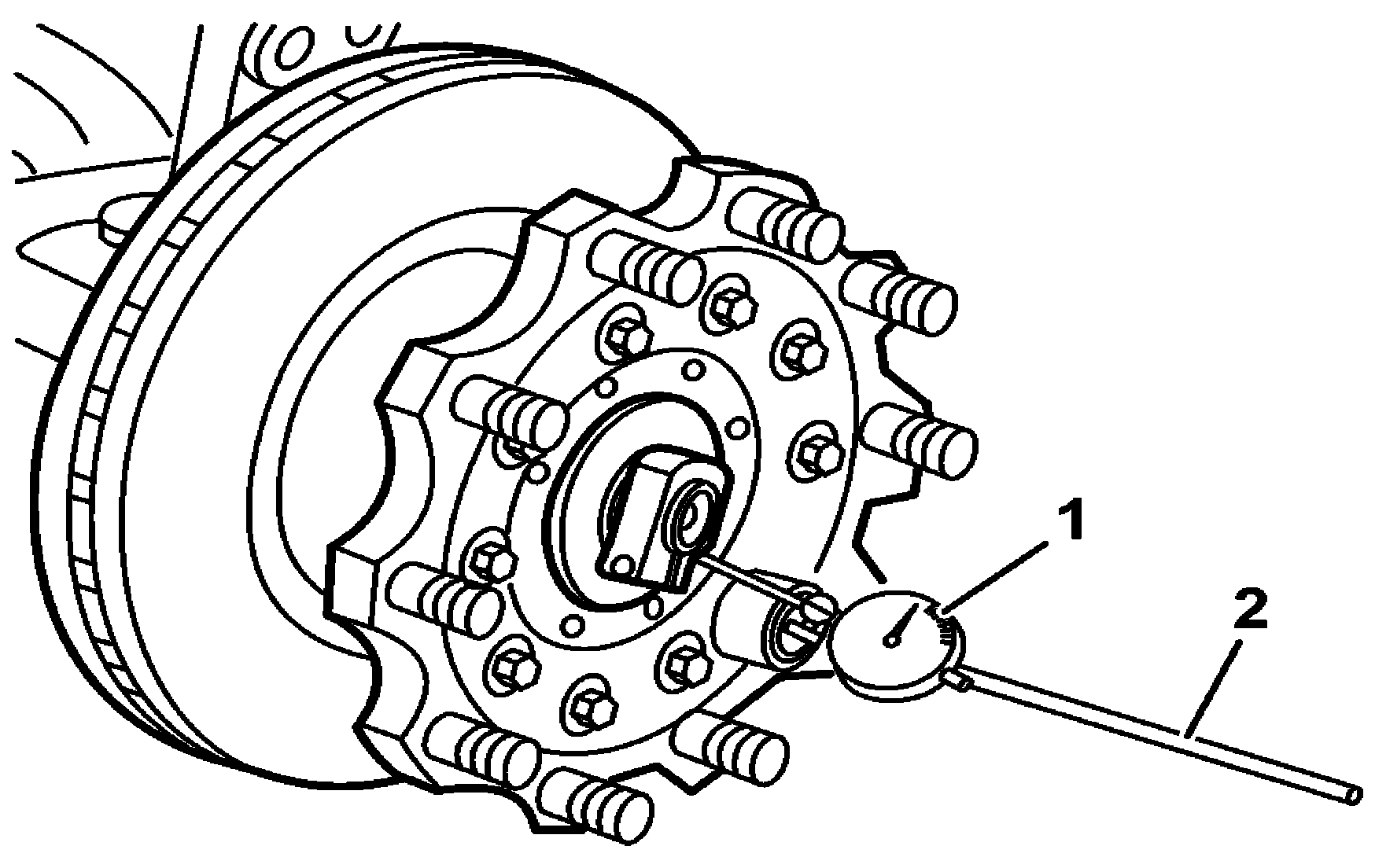

B33.20-0025-01

Check:

1 Place the holder (2) of the dial gauge (1) on the wheel hub.

2 Place the feeler of dial gauge (1), with some pre-load, on the stub axle.

3 Check clearance reading on dial, strongly pushing-in and pulling-out the wheel hub.

If the determined bearing clearance value is not attained, it will be necessary to adjust the axial clearance.

Adjusting

4 Turn the bearing fastening nut with the special wrench (l) until the axial bearing clearance is obtained.

For new taper roller bearings, try to obtain the smallest determined axial clearance value.

5 Check again the taper roller bearing clearance
