Remove/install the suspension strut

Type ar · emne 32.25 · version 0101 · 2006-05-11

Gælder for: MODEL 219.3 except CODE (489) Aromatic (semi-active air suspension)

Ikke tilgængelig på “da”; vises på Engelsk.

Placering

Funktionsgruppe 2 Chassis › 32 Affjedring › 32.25 Støddæmpere, dæmperben, fjederben — Serie 219 (modeller 3**)

EinPAS 20 Undervogn › 20.16 affjedring › 20.16.30 fjeder/fjederbælg/støddæmper/fjederben — Serie 219 (modeller 3**)

AR32.25-P-1017TX

Remove/install the suspension strut

2.5.06

MODEL 219.3 except CODE (489) Aromatic (semi-active air suspension)

Remove/install the suspension strut
Remove/install the suspension strut

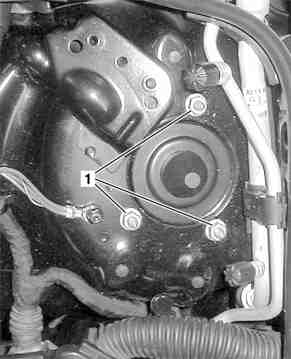

P32.25-2058-02

1 Nut

7 Suspension strut

17 Spring control arm

P32.25-2128-02

Remove/install

Danger!

Risk of injury caused by moving parts that can pinch, crush or, in extreme cases even sever extremities.

Keep body parts and limbs well clear of moving parts.

AS00.00-Z-0009-01A

Notes on self-locking nuts and bolts

AH00.00-N-0001-01A

Installation

Tighten nuts and bolts of chassis components only when vehicle is in the ready-to-drive condition.

1

Place front wheels in straight-ahead position

2

Remove front wheel

Remove and install wheels

AP40.10-P-4050TX

3

Unscrew nuts (1).

*BA32.25-P-1001-04K

4

Detach suspension strut (7) from spring control arm (17)

*BA32.25-P-1002-04K

5

Press spring control arm (17) downwards and remove spring strut (7) towards the rear

6

Install in the reverse order

7

Check headlamp setting and correct if necessary

After installing new parts

Check and correct headlamp adjustment

AP82.10-P-8260TX

Struts

Number

Designation

Model
219 with
steel suspension

BA32.25-P-1001-04K

Nut, front suspension strut to front end

Nm

25

BA32.25-P-1002-04K

Bolt, front suspension strut to spring control arm

Nm

165
