Remove/install chain tensioner

Type ar · emne 05.10 · version 0205 · 2006-04-26

Gælder for: ENGINE 272 in MODELS 211, 219 M24×1,5'

Ikke tilgængelig på “da”; vises på Engelsk.

Placering

Funktionsgruppe 1 Motor › 05 Motorstyring › 05.10 Forkædedrev, tandremstræk — Serie 211 · Serie 219

EinPAS 15 Motor › 15.17 Motorstyring › 15.17.34 Kædetræk/tandrem/tandhjulsdrev — Serie 211 · Serie 219

Gælder også for motorer/gearkasser: 272 ***

AR05.10-P-7800TS

Remove/install chain tensioner

12.4.06

ENGINE 272 in MODELS 211, 219
M241,5

Remove/install chain tensioner

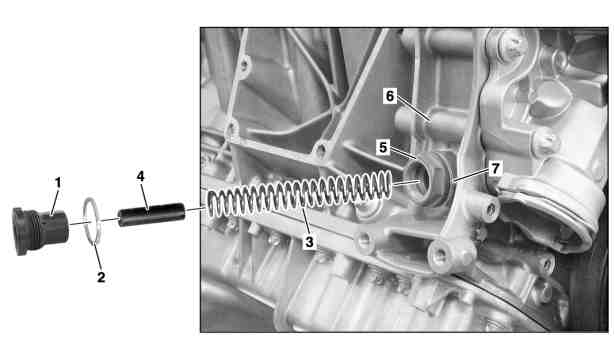

P05.10-2201-05

1 End piece

2 Sealing ring

3 Compression spring

4 Filler pin

5 Chain tensioner housing

6 Timing case cover

7 Sealing ring

Removing

1

Remove alternator

AR15.40-P-5032TS

2

Unscrew end piece (1) from chain tensioner housing (5) and remove sealing ring (2)

3

Pull push spring (3) and filler pin (4) out of chain tensioner housing (5)

4

Remove chain tensioner housing (5) from timing case cover (6)

Install

5

Installing chain tensioner

Installation: It is essential to follow chain tensioner installation sequence, otherwise chain tensioner may not function correctly. Replace seals (2, 7).

AR05.10-P-7800-02VA

6

Install generator

AR15.40-P-5032TS

Danger!

Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the running engine

Secure vehicle to prevent it from moving by itself.
Wear closed and snug-fitting work clothes.
Do not grasp hot or rotating parts.

AS00.00-Z-0005-01A

7

Carry out an engine test run and check engine for leaks
