SM15.30-W-0004A | Attach protective cover to starter | 16.11.09 |
ENGINES 457.9 in MODELS 374, 375, 940, 942, 943, 944
W15.30-1070-11
Shown: Mitsubishi starter
1 Screw
2 Catch lug
3 Protective cap
M1 Starter

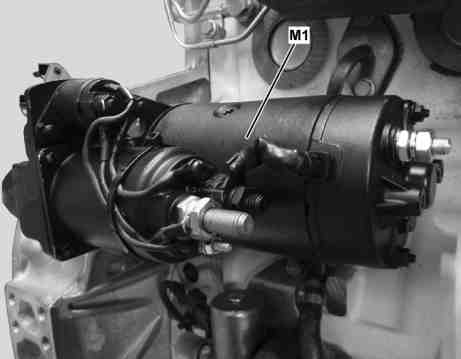

W15.30-1071-11
Shown: Bosch starter
M1 Starter
Operation no. of operation texts or standard texts and flat rates
Category | Op. no. | Operation text | Time | Acc. no. | Code |
O | 027095 | OPERATIONS: CHECK STARTER | 0.3 h | 15 900 69 | SCHUTZK |
O | 027096 | OPERATIONS: INSTALL PROTECTIVE CAP ON STARTER | 0.1 h | 15 900 69 | SCHUTZK |
Danger! | Risk of injury caused by body parts being pinched or crushed as cab is tilted | Ensure that no one is within the tilting range of the cab as it is being tilted. Always tilt the cab all the way to the end position and secure with the safety strut. | |
1 | Tilt cab | ||
| Notes on tilting the cab | ||
2 | Remove soundproofing on frame above on the right | ||
3 | Determine starter manufacturer (M1) | If a (M1 Mitsubishi starter is installed: | |
Carry out measure, proceed with operation step 4. | |||
If a Bosch (M1) starter is installed: | |||
Measure is complete, proceed with operation step 5. | |||
4 | Mount protective cap (3) on bearing cap of starter (M1) | The opposite catch tabs (2) on the protective cap (3) must engage in the bolts (1). | |
5 | Install soundproofing on frame above on the right | ||
Danger! | Risk of injury caused by body parts being pinched or crushed as cab is tilted | Ensure that no one is within the tilting range of the cab as it is being tilted. Always tilt the cab all the way to the end position and secure with the safety strut. | |
6 | Lower cab | ||
| Notes on tilting the cab |
Parts ordering notes
Part no. | Designation | Quantity |
A 000 150 05 75 05 | Protective cap | 1 |
