Control unit of trunk lid/liftgate control, basic function

Typ gf · téma 80.45 · verze 0107 · 2020-06-30

Platí pro: Model all (CAR) with code 881 (Remote boot-lid closing) Model all (CAR) with code 890 (Automatic rear-end door)

Není k dispozici v jazyce „cs“; zobrazeno v jazyce Angličtina.

Zařazení

Funkční skupina 3 Nástavba › 80 Centrální zamykání, komfortní ovládání, systémy oprávnění k jízdě › 80.45 Komfortní ovládání (KFB)/komfortní zavírání — Řada 900 (modely 9**) · Řada 902 (modely 9**) · Řada 904 (modely 918, 919, 924, 925, 938, 943, 957) · Řada 906 (modely 917, 918, 924, 953)

EinPAS 28 Komfortní asistenční systém/asistenční systém řidiče › 28.35 Komfortní ovládání › 28.35.11 Řídicí jednotka/relé — Řada 900 (modely 9**) · Řada 902 (modely 9**) · Řada 904 (modely 918, 919, 924, 925, 938, 943, 957) · Řada 906 (modely 917, 918, 924, 953)

Platí také pro motory/převodovky: 139 ***, 254 ***, 256 ***, 272 ***, 276 ***, 282 ***, 457 9**, 541 9**, 542 9**, 608 ***, 700 4**, 700 420, 700 421, 700 422, 700 423, 715 3**, 715 5**, 722 6**, 722 9**, 724 ***, 724 0**, 724 033, 724 044, 724 045, 724 1**, 724 103, 724 114, 724 115, 724 120, 725 ***, 725 0**, 725 035, 725 037, 725 038, 725 085, 725 1**, 739 390, 739 391, 739 395, 739 396, 739 397, 739 398, 739 399, 740 698, 743 3**, 743 4**, 743 498, 746 971, 924 9**, 924 910, 925 9**, 926 9**

GF80.45-P-9890A

Control unit of trunk lid/liftgate control, basic function

15.06.2020

Model

all (CAR)

with code 881 (Remote boot-lid closing)

Model

all (CAR)

with code 890 (Automatic rear-end door)

Control unit of trunk lid/liftgate control, basic function

P80.45-2185-77

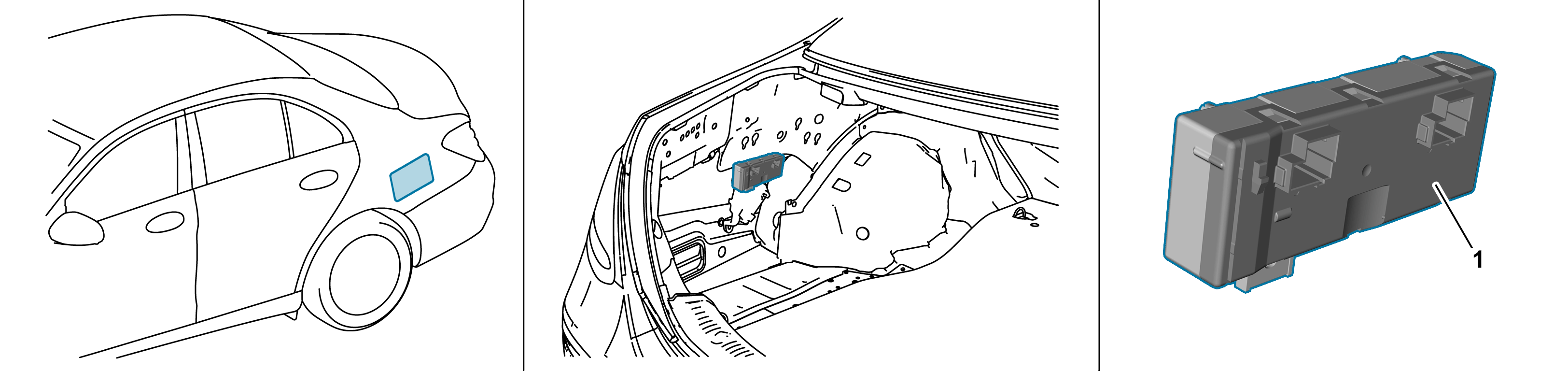

Shown is a vehicle with remote trunk closing

1

Trunk lid/liftgate control control unit

Location

Vehicles with remote trunk closing

The trunk lid control unit is located on the left in the trunk behind the trunk side trim.

Vehicles with EASY-PACK tailgate

Depending on the vehicle model, the liftgate control unit can be positioned at various points in the vehicle.

Task

The trunk lid/tailgate control unit controls the movement of the trunk lid or tailgate.

The control unit for the trunk lid/liftgate control is connected to the network architecture of the vehicle.

To control the movement of the trunk lid or tailgate, the trunk lid/tailgate control unit processes the following information:

Opening/closing requests of trunk lid or tailgate

Terminal status of terminal 15

Vehicle speed

Opening angle limiter status

During the movement of the trunk lid or the liftgate, the control unit for the trunk lid/liftgate control actuates the electric motor of the trunk lid/liftgate control. The trunk lid/liftgate control warning buzzer is also actuated in vehicles with EASY-PACK liftgate or with remote trunk closing and HANDS-FREE ACCESS. The control unit for the trunk lid/liftgate control derives movement or position of the trunk lid or liftgate from the signals of the trunk lid/liftgate control Hall sensor.

Detailed information

Control unit for trunk lid/liftgate control, detailed information

Model 167
with code 890 (Automatic rear-end door)

GF80.45-P-0002A

Model 247
with code 890 (Automatic rear-end door)

GF80.45-P-0002B

Model 293
with code 890 (Automatic rear-end door)

GF80.45-P-0002C

Model 118.6
with code 890 (Automatic rear-end door)

GF80.45-P-0002D
