Exhaust system, detailed information

18.06.2020

Engine

608

Engine

654 in model 118, 177, 247

Engine

654 in model 167

Engine

656

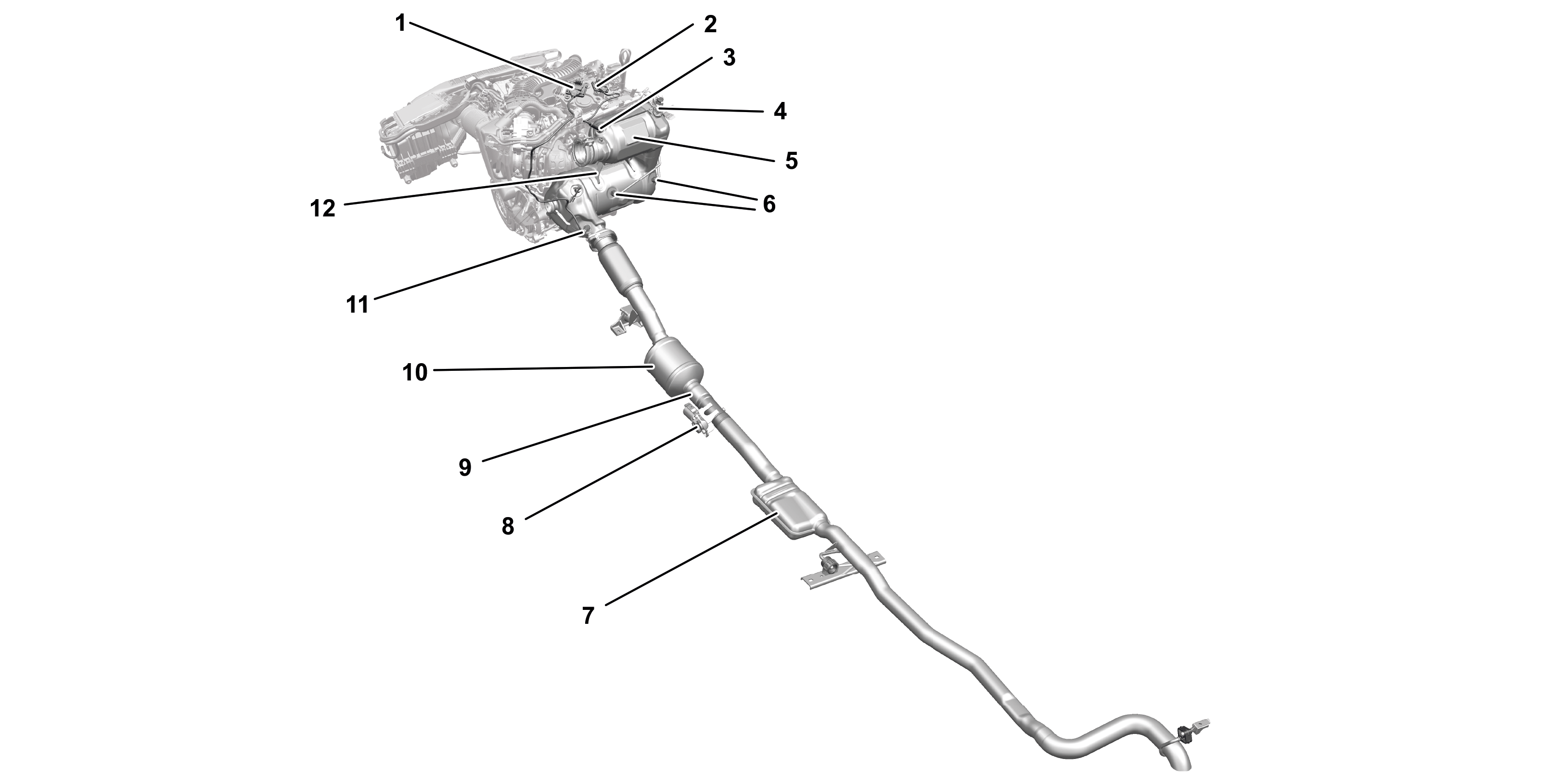

Exhaust system, detailed information

P49.00-A001-79

Shown on engine 654

1

NOxsensor control unit upstream of SCR catalytic converter

7

Module unit SCR catalytic converter and soot particulate filter

2

NOxsensor control unit downstream of SCR catalytic converter

8

NOxsensor downstream of SCR catalytic converter

3

NOxsensor upstream of SCR catalytic converter

9

Underbody SCR catalytic converter with ammonia slip catalytic converter

4

AdBlue® metering valve

10

Temperature sensor downstream of underbody SCR catalytic converter

5

Oxidation catalytic converter

11

Exhaust flap controller

6

Differential pressure sensor (DPF)

12

Front muffler

Control units

Exhaust gas aftertreatment control unit, detailed information

Engine 608
with code U79 (BLUETEC (SCR) diesel exhaust treatment, generation 3)
Engine 654 in model 118, 177, 247
with code U79 (BLUETEC (SCR) diesel exhaust treatment, generation 3)
Engine 654 in model 167
with code U79 (BLUETEC (SCR) diesel exhaust treatment, generation 3)
Engine 656 in model 167
with code U79 (BLUETEC (SCR) diesel exhaust treatment, generation 3)

GF49.20-P-0002B

NOx sensor control unit, detailed information

Engine 608
with code U79 (BLUETEC (SCR) diesel exhaust treatment, generation 3)
Engine 654 in model 118, 177, 247
with code U79 (BLUETEC (SCR) diesel exhaust treatment, generation 3)
Engine 654 in model 167
with code U79 (BLUETEC (SCR) diesel exhaust treatment, generation 3)
Engine 656 in model 167
with code U79 (BLUETEC (SCR) diesel exhaust treatment, generation 3)

GF49.20-P-0003A

Components

Exhaust system differential pressure sensor, detailed information

Engine 608
Engine 654 in model 118, 177, 247
Engine 654 in model 167

GF49.20-P-2500A

Exhaust gas aftertreatment tank, detailed information

Engine 608
with code U79 (BLUETEC (SCR) diesel exhaust treatment, generation 3)
Engine 654 in model 118, 177, 247
with code U79 (BLUETEC (SCR) diesel exhaust treatment, generation 3)
Engine 654 in model 167
with code U79 (BLUETEC (SCR) diesel exhaust treatment, generation 3)
Engine 656 in model 167
with code U79 (BLUETEC (SCR) diesel exhaust treatment, generation 3)

GF49.20-P-2502A

Exhaust gas aftertreatment pump module, detailed information

Engine 608
with code U79 (BLUETEC (SCR) diesel exhaust treatment, generation 3)
Engine 654 in model 118, 177, 247
with code U79 (BLUETEC (SCR) diesel exhaust treatment, generation 3)
Engine 654 in model 167
with code U79 (BLUETEC (SCR) diesel exhaust treatment, generation 3)
Engine 656 in model 167
with code U79 (BLUETEC (SCR) diesel exhaust treatment, generation 3)

GF49.20-P-2503A

Exhaust system temperature sensor, detailed information

Engine 608
Engine 654 in model 118, 177, 247

GF49.20-P-2505A

Engine 654 in model 167
Engine 656

GF49.20-P-2505C
