GF14.30-P-4028D

Air shutoff valve position/task/function

24.10.96

ENGINE 104.941 with CODE (491) up to Model Year 96 USA version

ENGINE 104.942 with CODE (491) up to Model Year 96 USA version

ENGINE 104.991 with CODE (491) up to Model Year 96 USA version

ENGINE 104.992 with CODE (491) up to Model Year 96 USA version

ENGINE 104.994 with CODE (491) up to Model Year 96 USA version

ENGINE 104.995 with CODE (491) as of Model Year 96 up to 96 USA version

ENGINE 111.961 with CODE (491) as of Model Year 94 USA version

15.03.07

The document has been updated to this date

and will no longer be subject to revision.

Air shutoff valve position/task/function

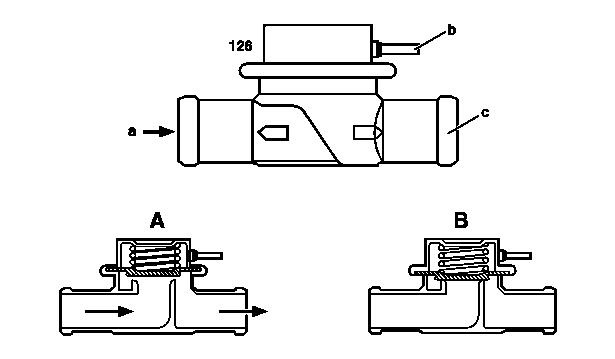

P14.20-0251-05

126 Air shutoff valve

a From air pump

b To engine

c Vacuum connection

A Air shutoff valve open, secondary air injection operating

B Air shutoff valve closed

Position

Between air pump and cylinder head

Task

Preventing air being inducted into the outlet passages, caused by the flow of the exhaust gases, when the air pump is switched off

Function

The air shutoff valve is opened by vacuum through the air pump switchover valve (Y32). The injected air of the air pump is able to flow through.
