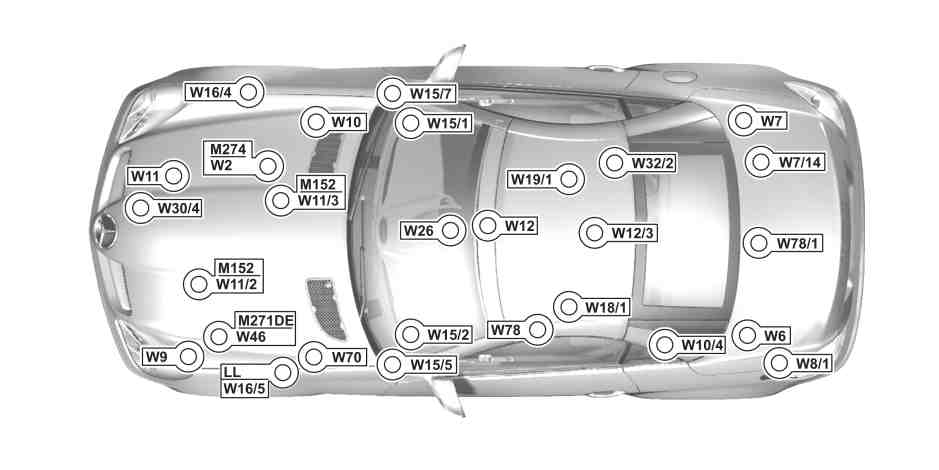

Location and assignment of ground points

GF00.19-P-2000TAA

Location and assignment of ground points

25.09.2018

Model

172.4

Location

W2

Right front ground point (at lamp unit)

ENGINE 274

GF00.19-P-2001-02TAA

W6

Left wheel arch trunk ground point

GF00.19-P-2001-21TAA

W7

Right wheelhouse trunk ground point

GF00.19-P-2001-21TAA

W7/14

AdBlue® ground point

GF00.19-P-2001-21TAA

W8/1

Left tailgate ground point

GF00.19-P-2001-21TAA

W9

Left front ground point (at lamp unit)

GF00.19-P-2001-01TAA

W10

Right front battery ground point

GF00.19-P-2001-02TAA

W10/4

2nd battery ground point

GF00.19-P-2001-21TAA

W11

Combustion engine ground point

GF00.19-P-2001-02TAA

W11/2

Right combustion engine ground point

GF00.19-P-2001-02TAA

W11/3

Left combustion engine ground point

GF00.19-P-2001-02TAA

W12

Ground point (center console)

GF00.19-P-2001-03TAA

W12/3

Center console ground point (static discharge)

GF00.19-P-2001-03TAA

W15/1

Right footwell ground point

GF00.19-P-2001-05TAA

W15/2

Left footwell ground point

GF00.19-P-2001-04TAA

W15/5

Left front footwell ground point

GF00.19-P-2001-04TAA

W15/7

Right front footwell ground point

GF00.19-P-2001-05TAA

W16/4

Right major assembly compartment ground point

GF00.19-P-2001-02TAA

W16/5

Left major assembly compartment electronics ground point

GF00.19-P-2001-01TAA

W18/1

Center rear crossmember ground point

GF00.19-P-2001-04TAA

W19/1

Right front seat crossmember ground point

GF00.19-P-2001-05TAA

W26

Supplemental restraint system (SRS) control unit ground point

GF00.19-P-2001-03TAA

W30/4

Power steering pump ground point

GF00.19-P-2001-02TAA

W32/2

Right rear panel ground point

GF00.19-P-2001-05TAA

W46

Air pump ground point

GF00.19-P-2001-01TAA

W46/1

Electric coolant pump ground point

GF00.19-P-2001-10TAA

W70

Electronic Stability Program ground point

GF00.19-P-2001-01TAA

W78

Roof ground point

GF00.19-P-2001-04TAA

W78/1

Rear window interference suppression capacitor ground point

GF00.19-P-2001-21TAA

Assignment

GF00.19-P-2001-21TAA

W2

Right front ground point (at lamp unit)

ENGINE 274

PE07.08-P-2101TAG

W6

Left wheel arch trunk ground point

PE00.19-P-2800TAA

W7

Right wheelhouse trunk ground point

PE00.19-P-2800TAA

W7/14

AdBlue® ground point

PE14.40-P-2101TAA

W8/1

Left tailgate ground point

PE54.21-P-2108TAD

W9

Left front ground point (at lamp unit)

PE00.19-P-2800TAA

W10

Right front battery ground point

ENGINE 152, 276

PE15.00-P-2101TAA

W10

Right front battery ground point

Engine 651

PE15.00-P-2101TAB

W10

Right front battery ground point

Engine 271, 274

PE15.00-P-2101TAC

W10/4

2nd battery ground point

ENGINE 152, 276

PE15.00-P-2101TAA

W10/4

2nd battery ground point

Engine 651

PE15.00-P-2101TAB

W10/4

2nd battery ground point

Engine 271, 274

PE15.00-P-2101TAC

W11

Combustion engine ground point

Engine 271 up to 05/2015

PE07.08-P-2101TAA

W11

Combustion engine ground point

Engine 276.9 up to 02/2016

PE07.08-P-2101TAD

W11

Combustion engine ground point

Engine 276.8 as of 03/2016

PE07.08-P-2101TAH

W11/2

Right combustion engine ground point

PE07.08-P-2101TAF

W11/3

Left combustion engine ground point

PE07.08-P-2101TAF

W12

Ground point (center console)

PE00.19-P-2800TAB

W12/3

Center console ground point (static discharge)

PE54.21-P-2106TAH

W15/1

Right footwell ground point

PE00.19-P-2800TAB

W15/2

Left footwell ground point

PE00.19-P-2800TAB

W15/5

Left front footwell ground point

PE00.19-P-2800TAC

W15/7

Right front footwell ground point

PE00.19-P-2800TAD

W16/4

Right major assembly compartment ground point

PE00.19-P-2800TAE

W16/5

Left major assembly compartment electronics ground point

PE00.19-P-2800TAE

W18/1

Center rear crossmember ground point

PE00.19-P-2800TAD

W19/1

Right front seat crossmember ground point

PE00.19-P-2800TAD

W26

Supplemental restraint system control unit ground point

PE00.19-P-2800TAB

W30/4

Power steering pump ground point

PE46.25-P-2000TAA

W32/2

Right rear panel ground point

PE00.19-P-2800TAB

W46

Air pump ground point

PE54.21-P-2106TAE

W46/1

Electric coolant pump ground point

PE54.21-P-2106TAE

W70

Electronic Stability Program ground point

PE42.47-P-2000TAA

W78

Roof ground point

PE54.21-P-2108TAG

W78/1

Rear window interference suppression capacitor ground point

PE54.21-P-2108TAG

Overview of location documents

Location of ground points - engine compartment, left

GF00.19-P-2001-01TAA

Location of ground points - engine compartment, right

GF00.19-P-2001-02TAA

Location of ground points - cockpit

GF00.19-P-2001-03TAA

Location of ground points - interior compartment, left

GF00.19-P-2001-04TAA

Location of ground points - interior compartment, right

GF00.19-P-2001-05TAA

Location of ground points - underfloor

GF00.19-P-2001-10TAA

Location of ground points - rear end

GF00.19-P-2001-21TAA
