Pipe diameter of low-pressure line at expansion valve and at refrigerant evaporator modified

Typ bt · téma 83.30 · verze 0100 · 2005-05-09

Platí pro: MODELS 930, 932, 933, 934 with CODE (H03) Air conditioning in front end MODELS 930, 932, 933, 934 with CODE (H07) Automatic air conditioning

Není k dispozici v jazyce „cs“; zobrazeno v jazyce Angličtina.

Zařazení

Funkční skupina 3 Nástavba › 83 Klimatizace › 83.30 Klimatizace — Řada 930 · Řada 932 · Řada 933 · Řada 934

EinPAS 39 Topení/větrání/chlazení › 39.15 Klimatizace › 39.15.13 Potrubí/hadice/ventil — Řada 930 · Řada 932 · Řada 933 · Řada 934

BT83.30-W-0002-01A

Pipe diameter of low-pressure line at expansion valve and at refrigerant evaporator modified

MODELS 930, 932, 933, 934 with CODE (H03) Air conditioning in front end

MODELS 930, 932, 933, 934 with CODE (H07) Automatic air conditioning

Pipe diameter of low-pressure line at expansion valve and at refrigerant evaporator modified

W83.30-1092-02

As of vehicle ident. end no. 968300, the diameter of the low-pressure line (1) at the expansion valve (2) and at the refrigerant evaporator (3) of the air conditioning inside the heater housing has been modified.

Previous diameter = 15 mm

New diameter = 18 mm

Pipe diameter of low-pressure line at expansion valve and at refrigerant evaporator modified

W83.30-1093-02

Only the refrigerant evaporator (3) with the modified diameter will be available as a replacement part.

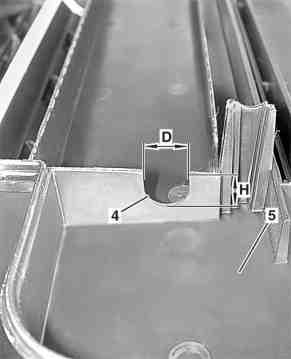

When installing a new refrigerant evaporator (3), it is therefore necessary to adapt the dimensions "H" and "D" of the cable duct (4) in the upper part of the heater housing (5) to the modified diameter. This can be down by boring, cutting or scraping out. Dimension "D" must be enlarged by 3 mm and dimension "H" by 2 mm.

The expansion valve is still available for the old and the modified line diameter.

To avoid placing incorrect orders, the diameter of the low-pressure line (1) at the evaporator should be checked first.
