Checking supporting joint and follower joint of steering knuckle mount (removed)

Typ ar · téma 33.20 · verze 0102 · 2005-11-08

Platí pro: MODEL 219

Není k dispozici v jazyce „cs“; zobrazeno v jazyce Angličtina.

Zařazení

Funkční skupina 2 Podvozek › 33 Přední náprava › 33.20 Vedení kola, náboj — Řada 219

EinPAS 17 Hnací ústrojí/náprava › 17.50 Přední náprava › 17.50.42 Čep nápravy/náboj kola/ložisko kola — Řada 219

AR33.20-P-0425TX

Checking supporting joint and follower joint of steering knuckle mount (removed)

26.10.05

MODEL 219

Checking supporting joint and follower joint of steering knuckle mount (removed)
Checking supporting joint and follower joint of steering knuckle mount (removed)

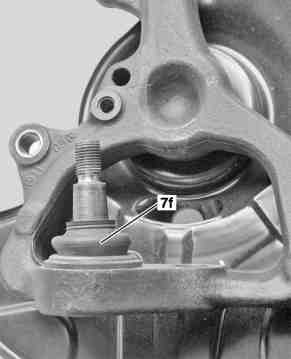

P33.20-2134-02

7f Supporting joint rubber boot

8f Follower joint rubber boot

P33.20-2133-02

Checking

1

Move the ball pin in all directions with an approximately 150 mm long pipe

The ball stud should move without play and without seizing, and should not cause any creaking noise.

2

Check rubber boot (7f) on supporting joint for cracks and damage

Replace supporting joint if necessary.

3

Check rubber boot (8f) on follower joint for cracks and damage

If necessary, replace follower joint:

Remove/install follower joint of steering knuckle bearing.

AR33.20-P-0427TX
