Axle AAC AF 12/13,3 |
1 | Pressure washer |
2 | Screw |
3 | Wheel hub cap |
4 | Gasket |
5 | Outer nut |
6 | Lock washer |
7 | Stop washer |
8 | Inner nut |
9 | Outer taper roller bearing |
10 | Wheel hub |
11 | Inner taper roller bearing |
12 | Radial seal |
13 | Axle sleeve |
14 | Plug |
B33.20-0045-06

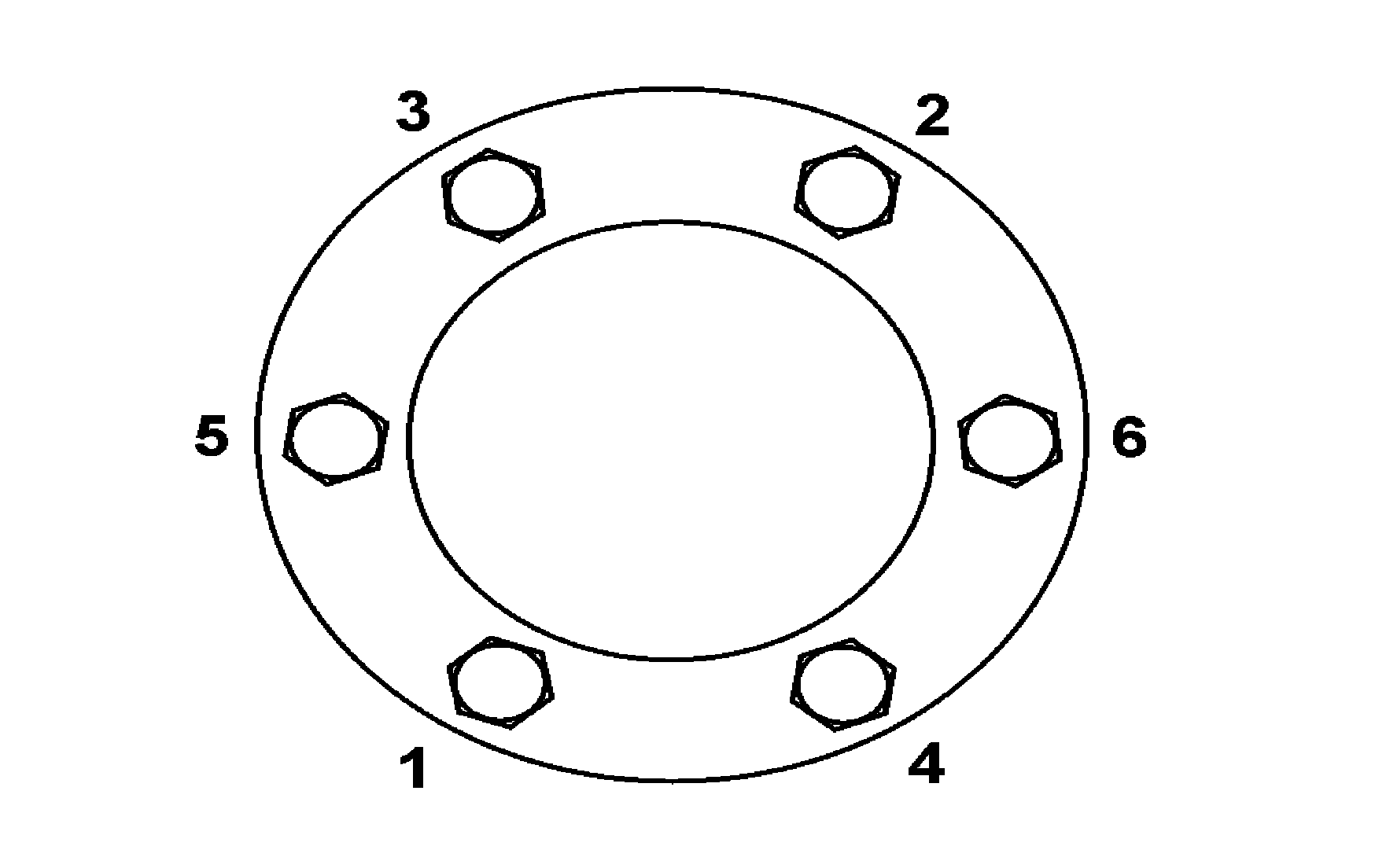

Tightening sequence for the wheel hub cap screws. |
B33.20-0041-01
| Remove | ||
1 | Drain the wheel hub oil (10) | ||
| Front axle - oil change | . | |
The oil can be drained by removing the plug (14) and turning the wheel hub so that the hole in the hub cover (3) is down. | |||
2 | Remove the screws (2) and spring lock washers (1), the wheel hub cover (3) and the gasket (4) | ||
3 | Unlock the locking washer (6), loosen and remove the outer nut (5), the stop washer (7) and the inner nut (8) | ||
4 | Remove the wheel hub (10) using a proper puller | The external tapered roller bearing (9) is removed simultaneously with the wheel hub (10). | |
If the internal tapered roller bearing (11) remains attached to the shaft sleeve (13), remove it with a suitable puller. | |||
Note the correct bearing assembly position for future reference. | |||
| Install | ||
5 | Install the inner tapered roller bearings (11) on the wheel hub (10) | Pay attention to the correct bearing assembly position. | |
6 | Install the radial seal (12) on the wheel hub (10) | Use a new radial seal. | |
7 | Install the wheel hub (10) on the axle sleeve (13) | The wheel hub previously assembled with the internal tapered roller bearing and the radial seal must be installed carefully in the axle sleeve in order to avoid damage to these components. | |
8 | Install the tapered roller bearings (9) on the wheel hub (10) | ||
9 | Install the inner nut (8) to the specified tightening torque | Rotate the wheel hub a few times while tightening the inner nut in order to provide perfect seating of the bearings. | |
.Inner bearing nut | |||
10 | Install the thrust washer (7), the lock washer (6) and the outer nut (5) | Use a new locking washer. | |
Make sure that the thrust washer and lock washer are perfectly aligned and engaged. Grease can be used to ensure the positioning of these components. | |||
11 | Tighten the outer nut (5) to the prescribed torque | .Outer bearing nut | |
12 | Fold part of the lock washer (6) over one side of the outer nut (5) | ||
13 | Install the gasket (4), the wheel hub cover (3), the screws (2) together with the lock washers (1) | Use a new gasket. | |
14 | Tighten the screws (2) up to the prescribed torque | The tightening of the screws must be carried out in steps and in the sequence shown in the figure. | |
.Cover fastening bolts | |||
15 | Fill the wheel hub with lubricating oil | ||
| Front axle - oil change | . |
