Test specifications for wheel location, wheel hub
Número | Denominação | Front axles 732.560 | Front axle 732.561 | |||
BE33.20-B-1001-01A | Check values wheel guide, hub | mm | 0.02...0.04 | 0.02...0.04 | ||
Test specifications for wheel location, wheel hub
Número | Denominação | Front axle 732.562 | |||
BE33.20-B-1001-01A | Check values wheel guide, hub | mm | 0.02..0.04 | ||
Wheel location, wheel hub
Número | Denominação | Front axle 732.51; 732.560/561/562; 733.82/84/88 | |||
BA33.20-B-1004-01B | Nut with lock screw | M24x1.5 | Nm | 60 | |
M40x1.5 | - | ||||
001 589 53 21 00
Dial indicator
363 589 02 21 00
Dial gauge holder
055 589 23 15 00
Special key

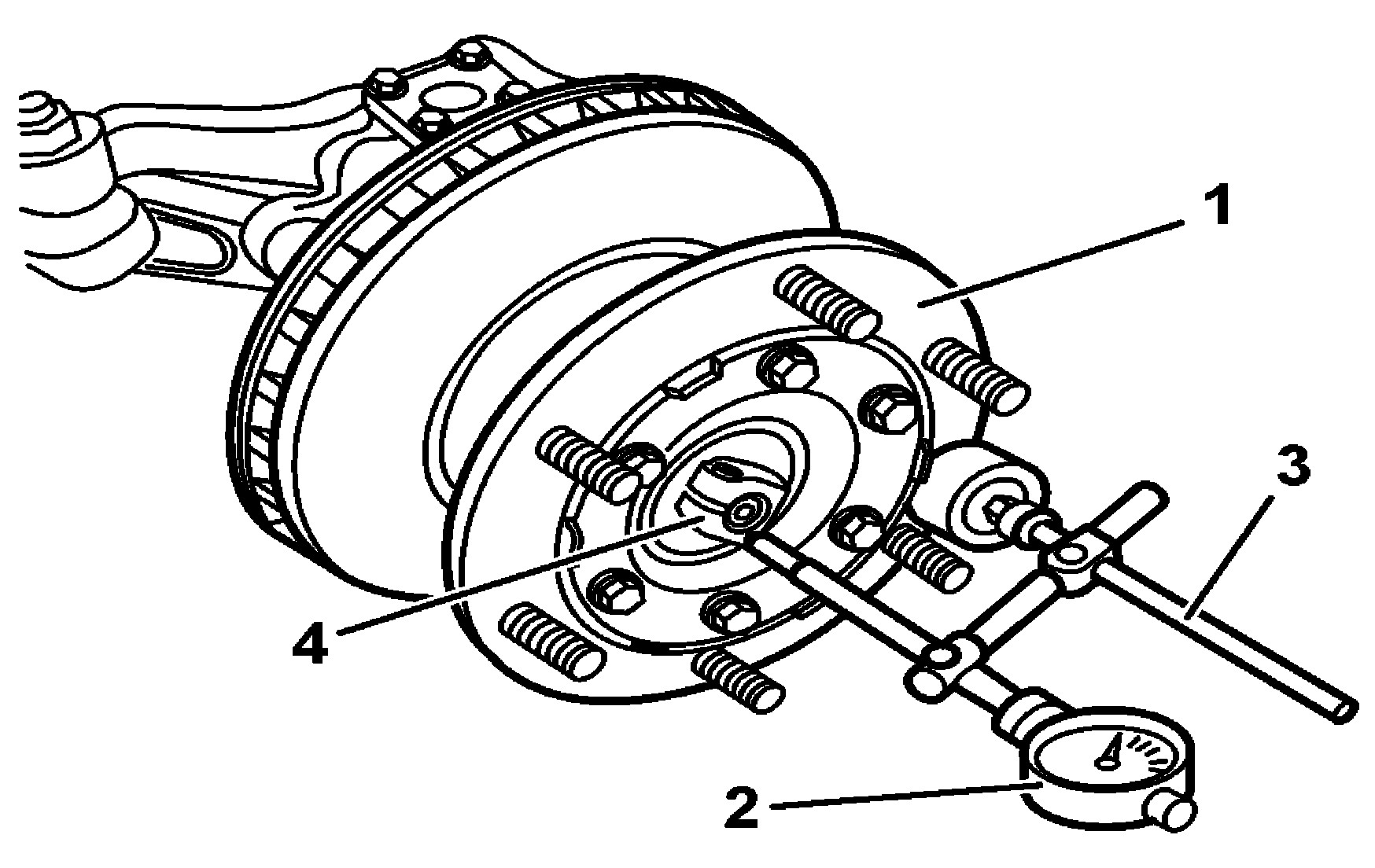

B33.20-0033-01
Verification
1 Install dial indicator holder (3) and the dial indicator (2) on wheel hub (1).
2 Place probe dial with previously established tension on the lock-nut (4).
3 Move hub outwards and inwards to verify bearing axle looseness.
If nominal value is not reached it is necessary to adjust wheel hub bearings. In new bearings look for obtaining smaller looseness value.
Regulating
4 Adjust lock-nut (4) until reaching prescribed bearing looseness.
Turn hub a few times during nut adjustment to guarantee the bearings to settle.
5 Lock the lock-nut screw (4).
