AR09.41-B-1311H | Remove/install charge air pipe | 12.02.16 |
Cumbustion engine 374 with Vehicle 688.176, 688.143, 688.133
Cumbustion engine 374.986 with Vehicle 688.156
Cumbustion engine 374.988 with Vehicle 688.156, 688.157
Cumbustion engine 374.989 with Vehicle 688.177
Cumbustion engine 374.990 with Vehicle 688.111
Cumbustion engine 374.991 with Vehicle 688.156, 688.177

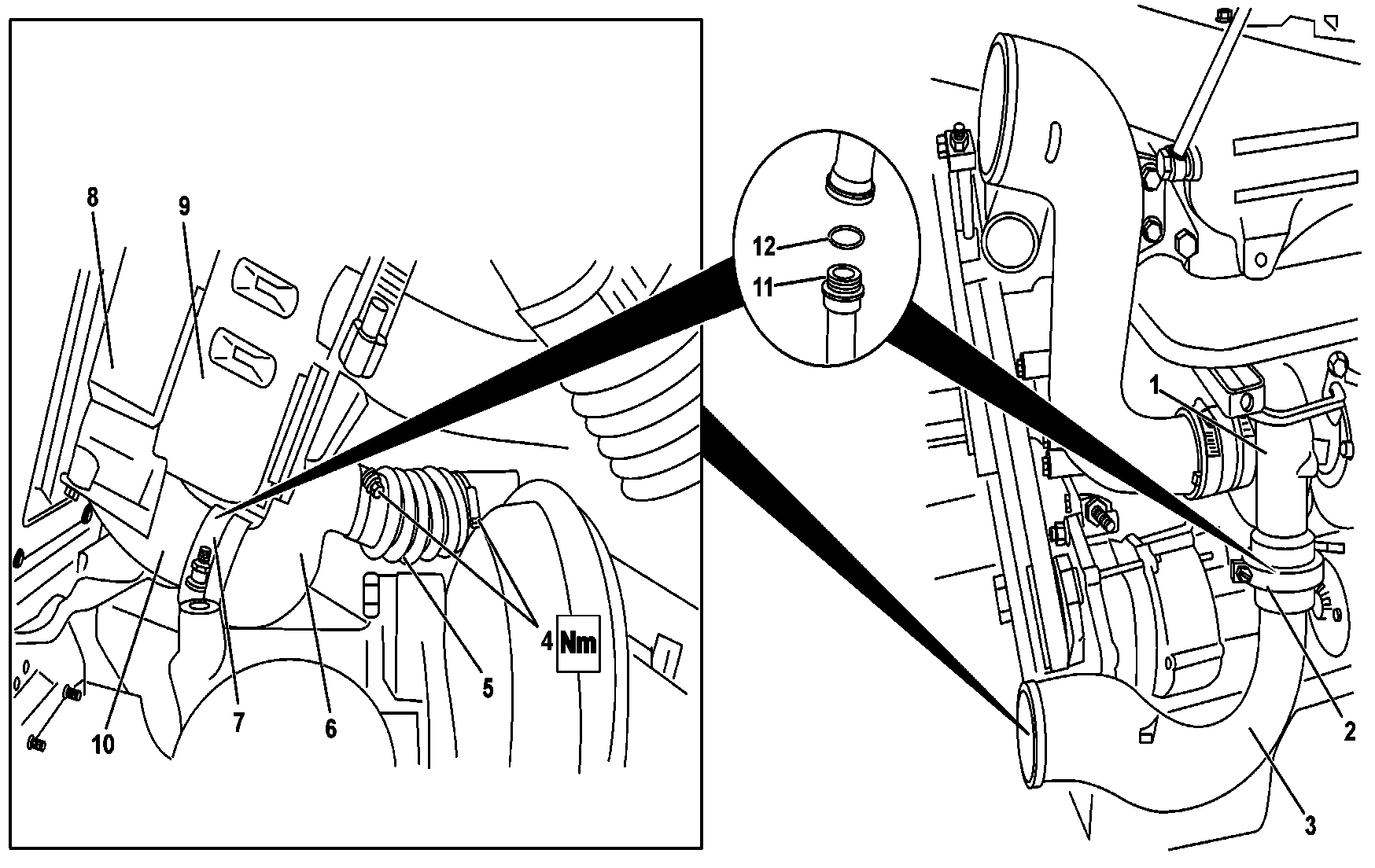

B09.41-0021-09
1 Turbocharger (cold part)
2 Clamp with internal channel
3 Metal pipe on engine
4 Clamps
5 Inlet flexible hose (red color)
6 Inlet metal pipe
7 Clamp with internal channel
8 Charge-air cooler
9 Radiator
10 Charge-air cooler outlet opening
11 Pipe fitting opening
12 Sealing ring
| Remove and install | ||
Danger! | Risk of accidents due to vehicle moving when the engine is started. Risk of injuries by pinching or suffer burns when working while the engine started or when the vehicle is moving | Assure vehicle against unintentional move. Use tight fitting and closed work clothes. Do not touch heated or running parts. | |
1 | Detach the battery negative lead or switch-off the master switch | Loosen the bolts on the side rail avoiding detaching the terminals on the battery posts. | |
2 | Remove the clamp with internal channel (7) of the outlet opening (10) junction with the metal pipe (6) | Installing: Check the clamp with internal channel for condition and if necessary replace it. | |
3 | Loosen the clamps (4) and remove the red color flexible hose (5) | Installing: Check the clamps and the red color flexible hose for condition and, should it be necessary, replace them. | |
| |||
4 | Remove the inlet metal pipe (6) | ||
5 | Remove the clamp with internal channel (2) at the turbocharger the outlet opening (1) and remove the metal pipe at the engine (3) | Installing: Install a new sealing ring (12) in the fitting opening (11) lubricated with neutral petroleum jelly. If necessary, replace the clamp with internal channel (2). | |
6 | Install in reverse order | Installing: All pipes and hoses must be thoroughly clean. | |
All charge-air cooler circulation system must be in perfect conditions. | |||
7 | Run the engine and check for eventual leaks |
Charge air pipe/charge air cooling
Número | Denominação | Engine 372.9; 374.9; 376.9 except for gas engines | |||
BA09.41-B-1001-01A | Fastening of the clamps on the inlet and outlet flexible hoses | Nm | 10 | ||
Produtos para reparos
Número | Denominação | Número de pedido |
BR00.45-B-1001-06A | Vaseline | - |
