AR09.41-B-1311G | Remove/install charge air pipe | 12.02.16 |
Cumbustion engine 372 with Vehicle 682.118, 682.128, 682.191
Cumbustion engine 376 with Vehicle 384.009, 384.047, 386.014, 386.015, 386.043, 386.364, 384.023, 384.024, 386.314, 386.369, 386.367, 384.114, 384.145, 386.024, 386.025, 386.027, 386.045
Cumbustion engine 377 with Vehicle 694.004, 694.024, 694.041, 694.047, 695.039, 695.056, 695.014, 695.016, 695.043, 695.013, 695.015, 695.301

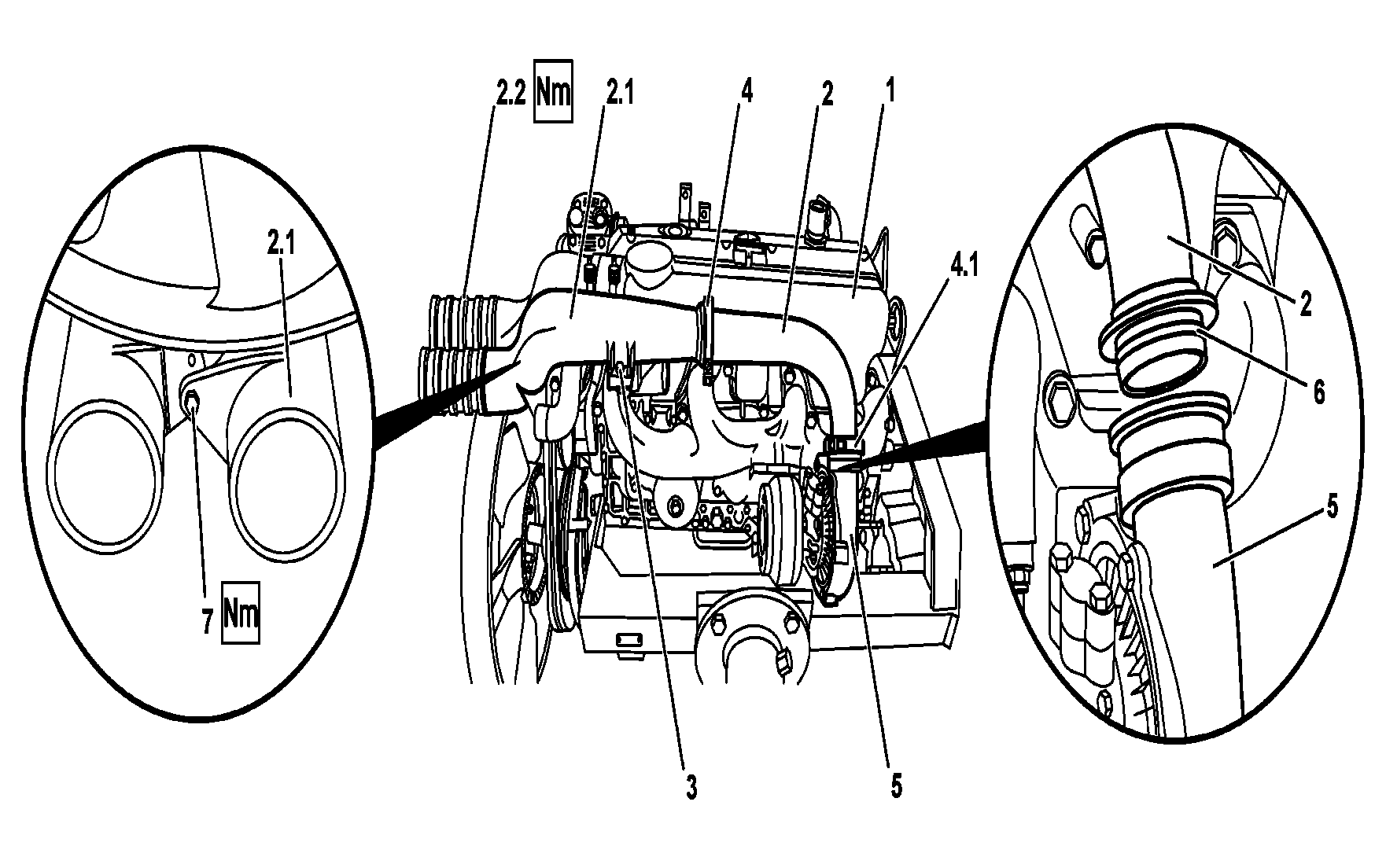

B09.41-0018-08
1 Engine
2 Turbocharger outlet metal pipe
2.1 Intermediate metal pipe
2.2 Flexible inlet hose (red) for after cooling
3 Pipe clamping bolt on the support
4 Clamp with connection pipes channel
4.1 Clamp with union channel with turbocharger
5 Turbocharger
6 Sealing ring
7 Pipe clamping bolts
| Remove and install | ||
Danger! | Risk of accident by involuntary movement with engine running.Risk of injury by trapping and crushing when opening and closing the engine hood | Watch out for involuntary movements in your vehicle.Use closed and well fastened work clothes.Do not touch in heated parts or moving. | |
1 | Disconnect the negative cable from battery or shut down master switch. | Release the screw on the negative cable to side rail, avoid the release on the terminals battery. | |
2 | Tilting the engine hood and lock it with security rod. | ||
3 | Release the cable tie and remove the red adaptable hose (2.2), of after cooling input. | Install: Check red hose (2.2) and cable ties status, if necessary, replace them. | |
| |||
4 | Remove the screw (7) which secures two pipes. | | |
5 | Remove the screw (3) which secures pipe on the support. | ||
6 | Remove two clamp with channels (4) and (4.1). | Install: Check clamp with channels (4) and (4.1) status, if necessary, replace them. | |
7 | Remove the intermediate metal pipe (2.1). | Use an appropriated plastic plug to avoid impurities entry. | |
8 | Remove the metal pipe (2) undocking it from turbocharger nozzle (5). | Close turbocharger nozzle (5) with an appropriated plastic plug. | |
9 | Remove the sealing ring (6). | Install: Assembly a new lubricated sealing ring (6) with neutral vaseline. | |
10 | Install in the reverse order | Install: let pipes and hoses absolutely clean to install the components | |
After cooling must be clean and perfect condition. | |||
11 | Work engine and check it regarding system leak tightness. |
Charge air pipe/charge air cooling
Número | Denominação | Engine 372.9; 374.9; 376.9 except for gas engines | |||
BA09.41-B-1001-01A | Fastening of the clamps on the inlet and outlet flexible hoses | Nm | 10 | ||
Produtos para reparos
Número | Denominação | Número de pedido |
BR00.45-B-1001-06A | Vaseline | - |
