Manual transmission - oil change

AP26.00-B-2601MB

Manual transmission - oil change

18.07.2019

Transmission

712.820/830 in model 963

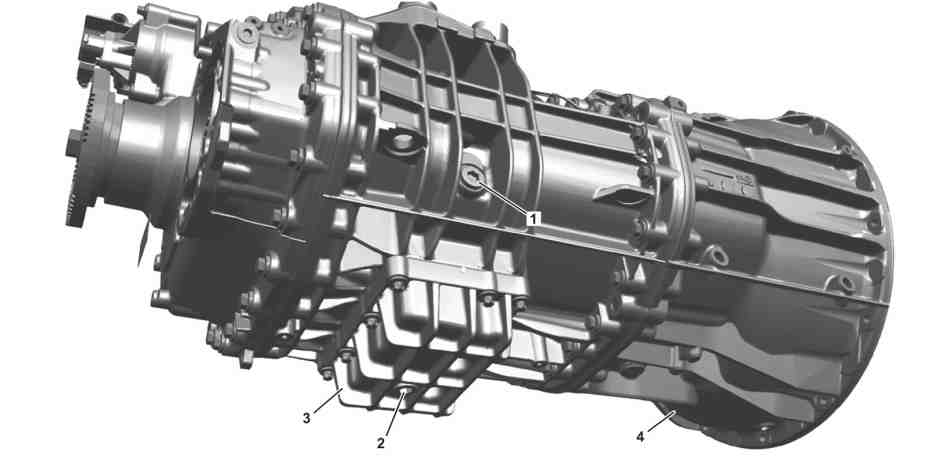

1

Filler plug

3

Oil pan

2

Drain plug

4

Gearbox

 Caution

Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil

Wear protective gloves, protective clothing and safety glasses.
Do not pour transmission oil into beverage bottles.

AS00.40-Z-0001-01A

Drain

1

Park the vehicle, apply the parking brake and shim the wheels

2

Clean the housing around the drain plug (2) and the filler plug (1)

3

Remove the filler plug (1)

4

Remove drain plug (2) and drain the oil


Drain the oil while it is hot.
This will make draining easier.

 Drain the oil in an appropriated recipient and dispose of it in Eco-friendly manner.

5

Remove the oil pan (3)



.

AR26.10-B-0004DT


Whenever possible, when changing the oil, remove the oil pan (3) and replace the oil sieve with a new one.
For if it is saturated with metal particles or residues of used oil, there will be contamination of the new gearbox oil (4), which can cause wear on the internal components.

Refill

6

Install the oil pan (3)



AR26.10-B-0004DT

Loctite 5203 surface sealant

*BR00.45-Z-1129-02A

 Oil pan bolt

*BA26.10-B-1007-01MB

7

Install the drain plug (2) on the oil pan (3)

 Clean the draining plug (2).

 Drain plug

*BA26.10-B-1001-01MB

8

Fill the gearbox (4) to the recommended level


Do not fill above the recommended level.
This will cause the oil to be forced out through the gearbox gaskets and seals (4).

 Always use the specified oil and exchange it within the recommended period.

 Filling volume

*BF26.10-B-1002-01DT

Do not mix oil of different types:



For they may lose their properties and their effectiveness.

9

Install the filler plug (1)

 Check oil level for correctness.

 Filler plug

*BA26.10-B-1002-01MB

10

Start the engine, let it run for approximately 2 minutes and then shut it down

11

Remove the filler cap (1) once again and check the oil level

In case the oil level is below the specified level:



Fill up the gearbox oil level (4).

12

Install the filler plug (1)

 Filler plug

*BA26.10-B-1002-01MB

13

Check gearbox (4) for leakages

Notes on the evaluation of leakage at the transmission

AH26.00-N-0002-01A

 G291-G340

Number

Designation

Gearbox 712.820/830 in the vehicle 963

BA26.10-B-1001-01MB

Drain plug

Nm

57

 G291-G340

Number

Designation

Gearbox 712.820/830 in the vehicle 963

BA26.10-B-1002-01MB

Filler plug

Nm

57

 G291-G340

Number

Designation

Gearbox 712.820/830 in the vehicle 963

BA26.10-B-1007-01MB

Oil pan bolt

Nm

58

 G291-G340

Number

Designation

Gearbox 712.820/830 in the vehicle 963

BF26.10-B-1002-01DT

Filling volume

Volume

Litro

9,4

Oil class

Consultar documento BB00.40-B-0235-16A no site Mercedes-Benz / Guia de Lubrificantes

Repair materials

Number

Designation

Order number

BR00.45-Z-1129-02A

Loctite 5203 surface sealant

Henkel AG & Co. KGaA
http://www.loctite.de
