D80.20-0023-10

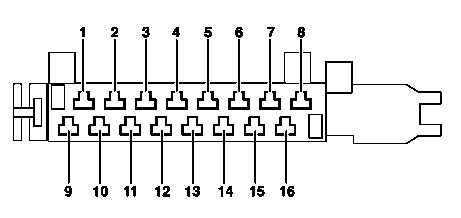

Connector of central locking control module:
Pin 1 Circuit 31 ground (I)
Pin 2 Rear door open control signal (I)
Pin 3 Rear door closed control signal (I)
Pin 4 Front passenger door closed control signal (I)
Pin 5 Front passenger door open control signal (I)
Pin 6 Driver door open control signal (I)
Pin 7 Driver door closed control signal (I)
Pin 8 Sliding door 2 open control signal (I)
Pin 9 Circuit 30 battery positive (I)
Pin 10 Engine contact M2 (O)
Pin 11 Engine contact M1 (O)
Pin 12 No function
Pin 13 Radio frequency locking (RFL) connection (O+I)
Pin 14 Hinged door 1 (crewcab) closed control signal (I)
Pin 15 Sliding door 2 closed control signal (I)
Pin 16 Hinged door 1 (crewcab) open control signal (I)
I = Input
O = Output
